Soul high chair
Ergonomic office chair high seating
Soul meet is a tall office chair with castors and foot ring. The back can be fully upholstered or with mesh in back height 50. The chair's design follows the body's movements and the few settings are logically placed and easy to use. Savo Soul High is available in black and white with black, glossy or white foot cross and pillars.
Model
Savo Soul high chair
Construction
Black back, with frame and J-bar in recycled plastic and cold foam (upholstered back). White back, with frame and J-bar in plastic and cold foam (upholstered back). Seat frame in plastic, with cold foam padding. Mechanism in cast recycled aluminium. Height-adjustable gas lift in steel. Black 5-star swivel base, in cast recycled plastic or recycled aluminium, with castors Ø 60 mm. White 5-star swivel base, in cast plastic, with castors Ø 60 mm. (option) Polished 5-star swivel base, in cast recycled aluminium. Armrests (option), in black injection-moulded recycled plastic or white injection-moulded plastic. Headrest (option), with frame in black recycled plastic and cold foam padding, or white with frame in plastic and cold foam padding.
Guarantee
10 years
Tested
EN1335- 1, -2:2018, EN1728

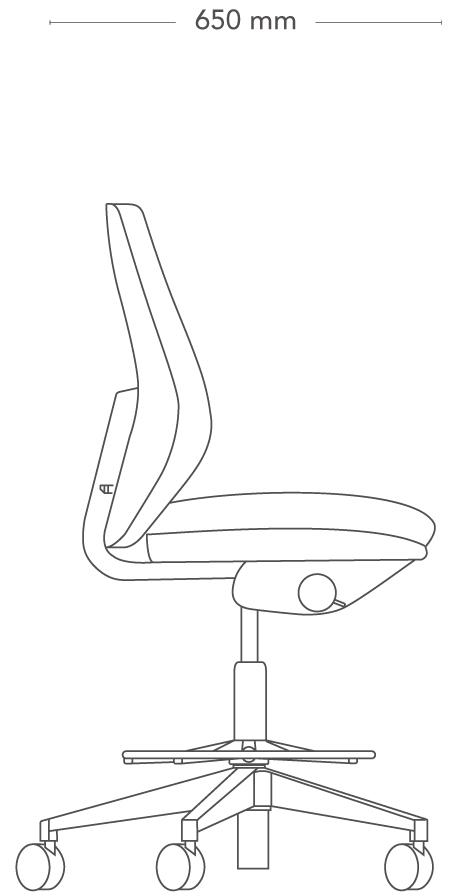

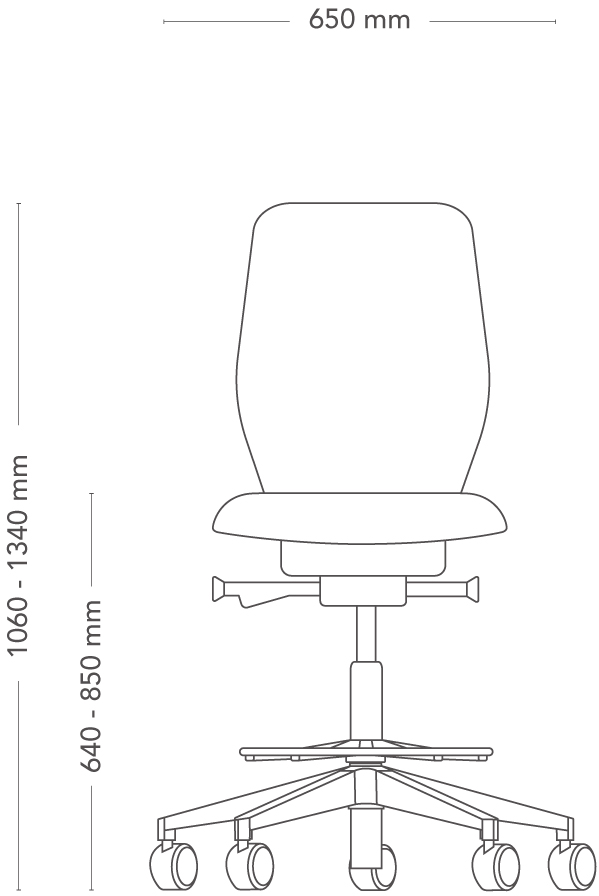

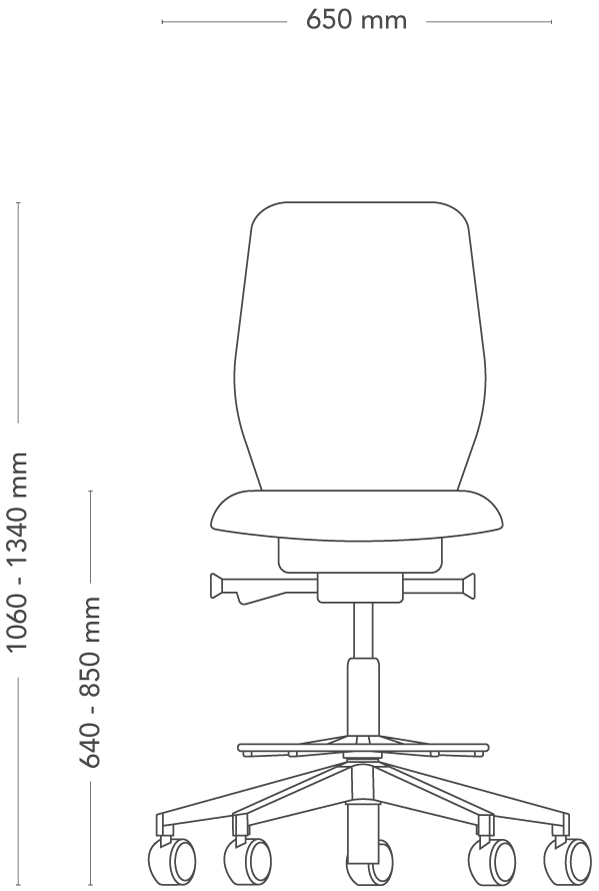

High chair, 40 back (small seat)
| Height | 1060-1340 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 640-850 mm |
| Backrest W | 400 mm |
| Backrest H | 480 mm |

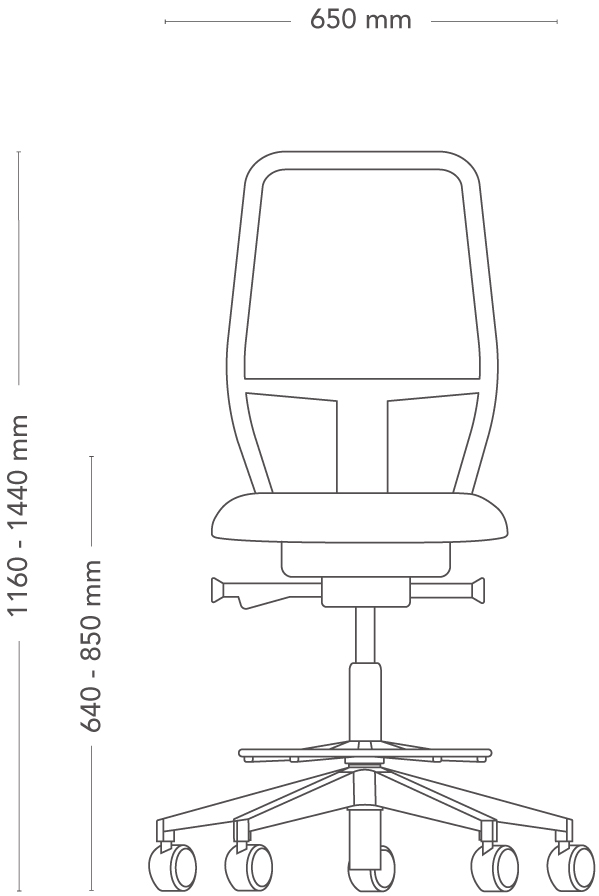

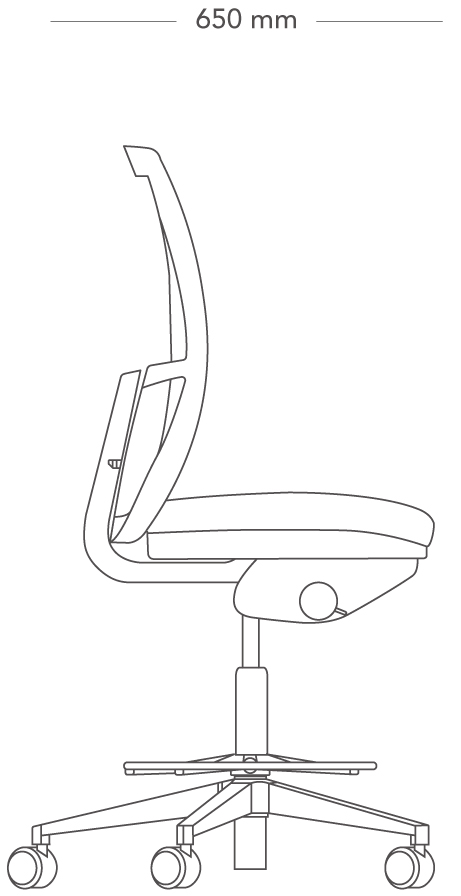

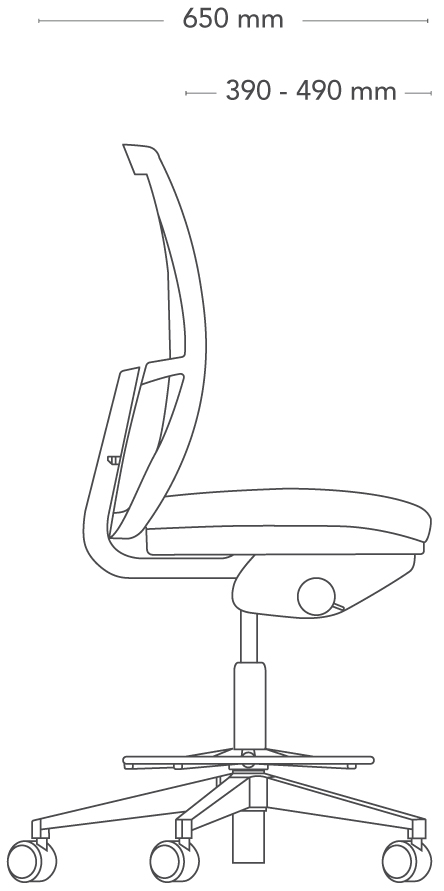

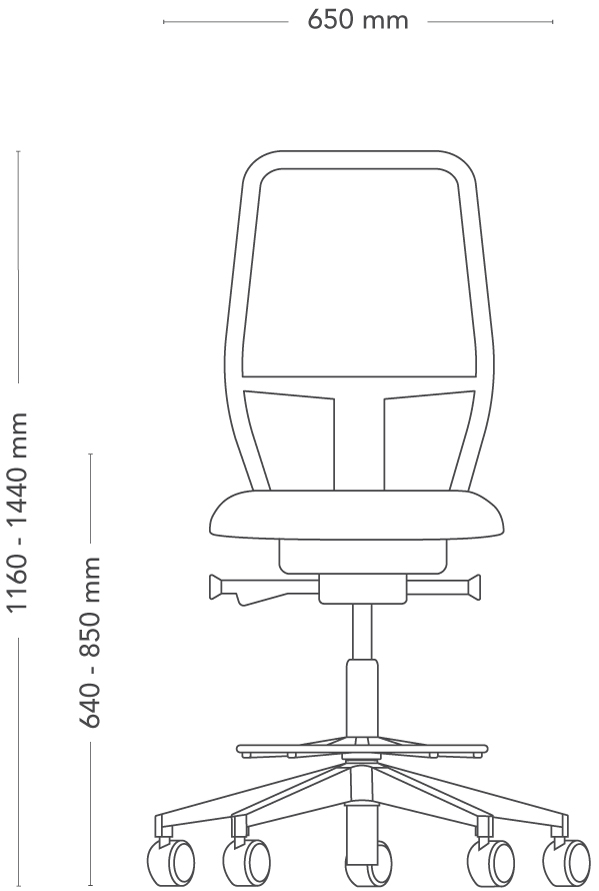

High chair, Mesh back 50 (small seat)
| Height | 1160-1440 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 640-850 mm |
| Backrest W | 420 mm |
| Backrest H | 590 mm |
| Base diameter | 710 mm |
| Weight | 13.3 kg |
Variant
Backrest
-
Back 40
Upholstered backrest, height 40 (not avaialable in white).
-
Mesh back
Mesh back.
Seat
-
Seat Small
Seat Small, 455x450 mm.
Materials
Seat and back
-
Fabric
-
Mesh back
-
Fabric
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-

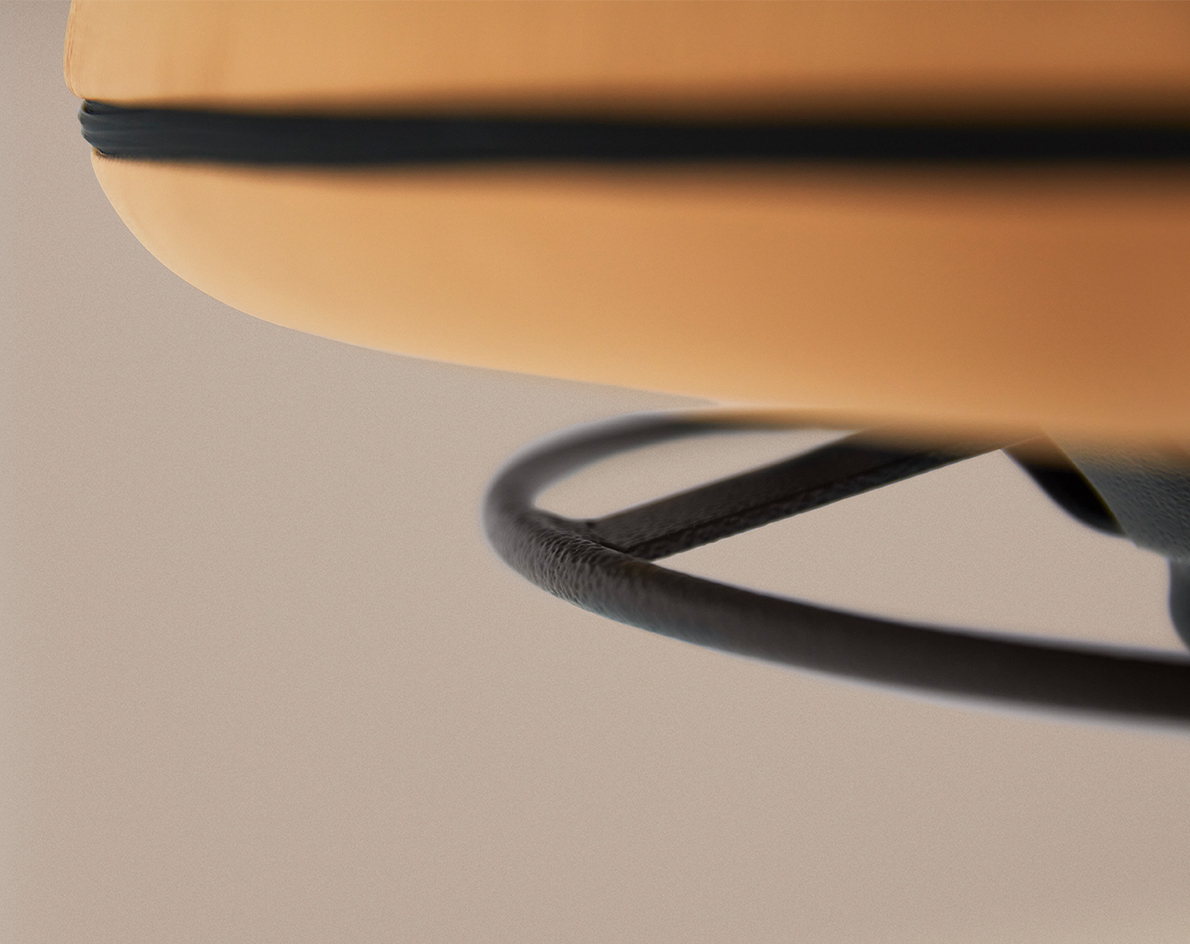

Foot ring Ø500 mm
Foot ring as option (Ø 500 mm). Polished/black or polished/white.
-
Backrest
Upholstered backrest, height 40. Mesh backrest height 50.
-
Fotkryss
Black or polished aluminium swivel base as option. White swivel base for white version of the chair.
