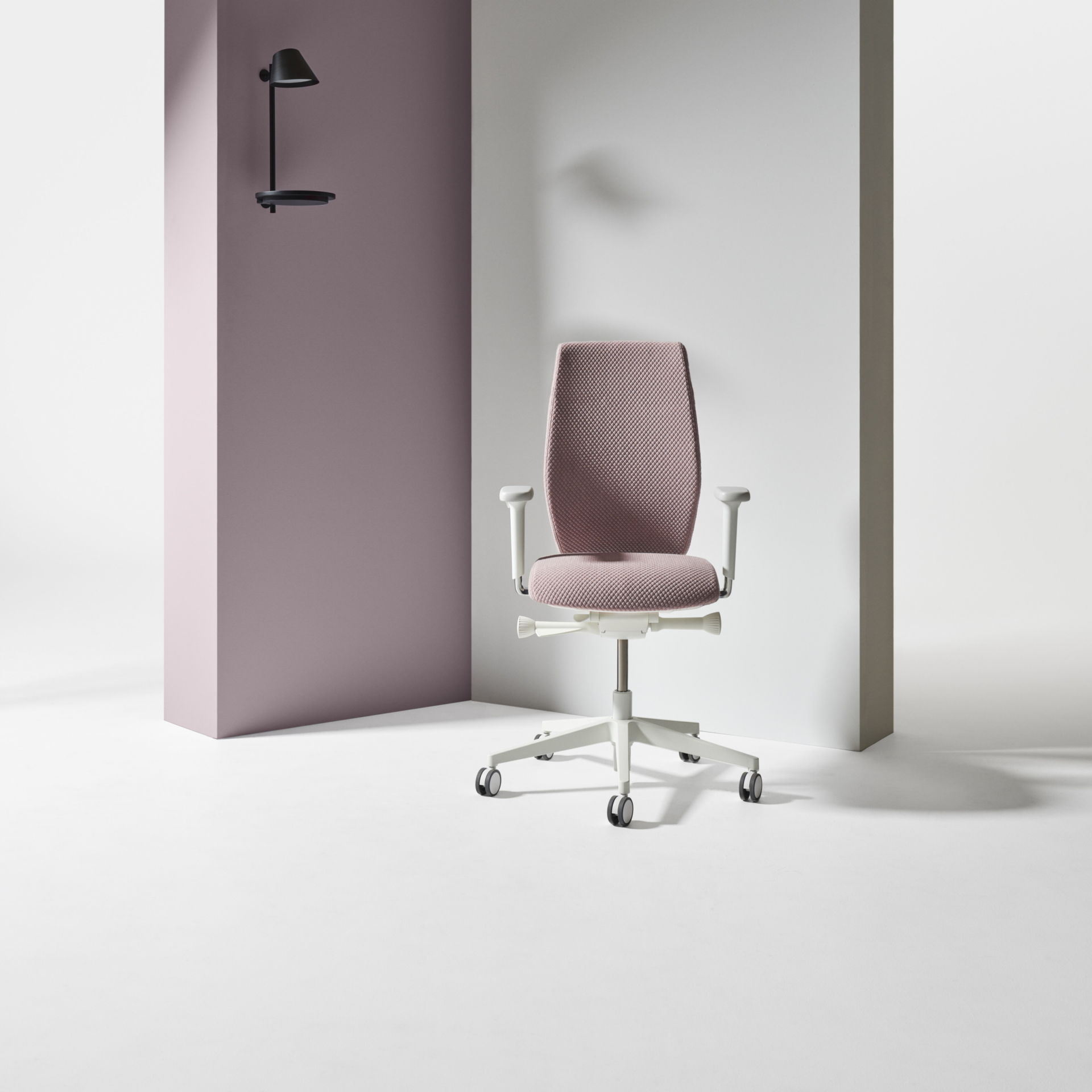

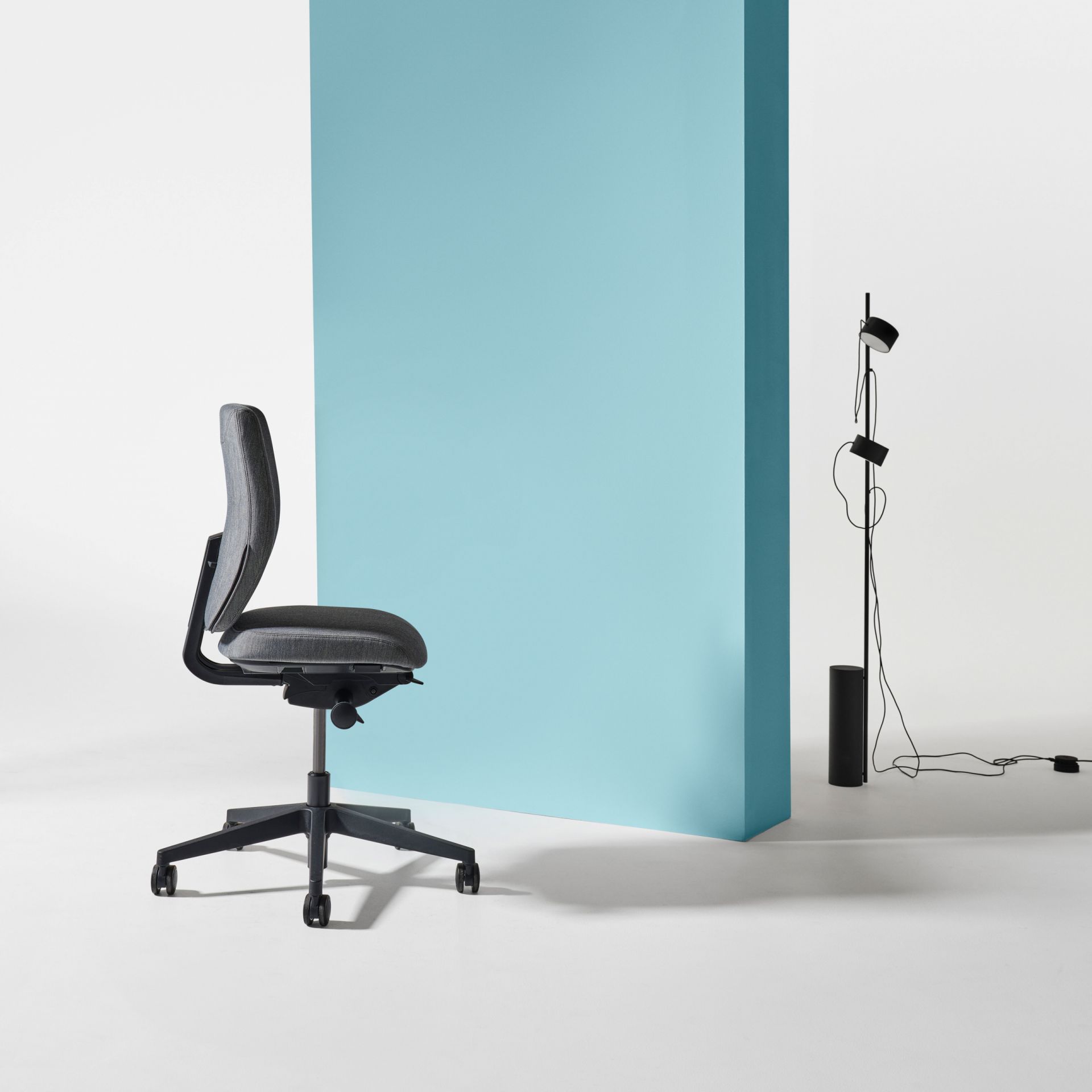

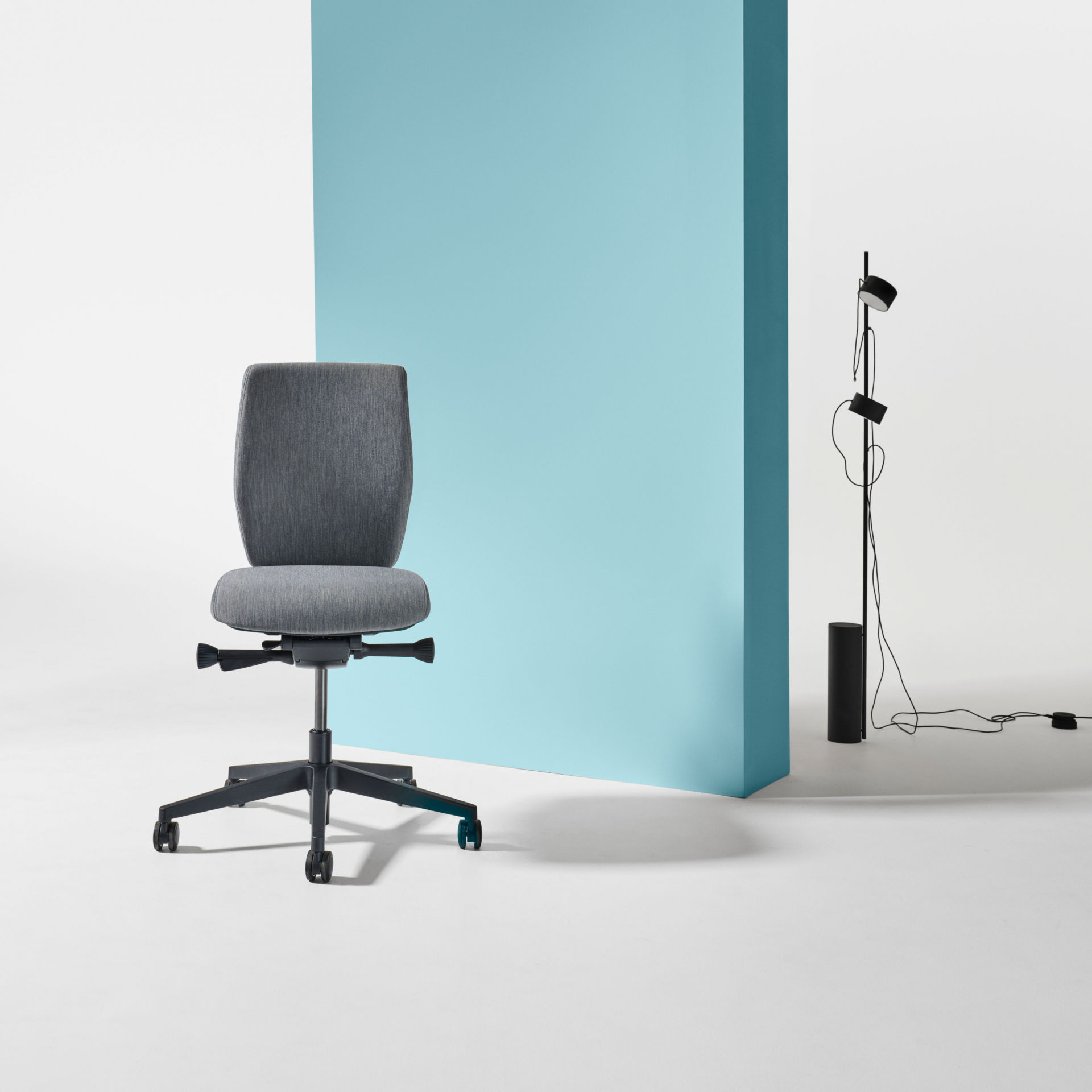

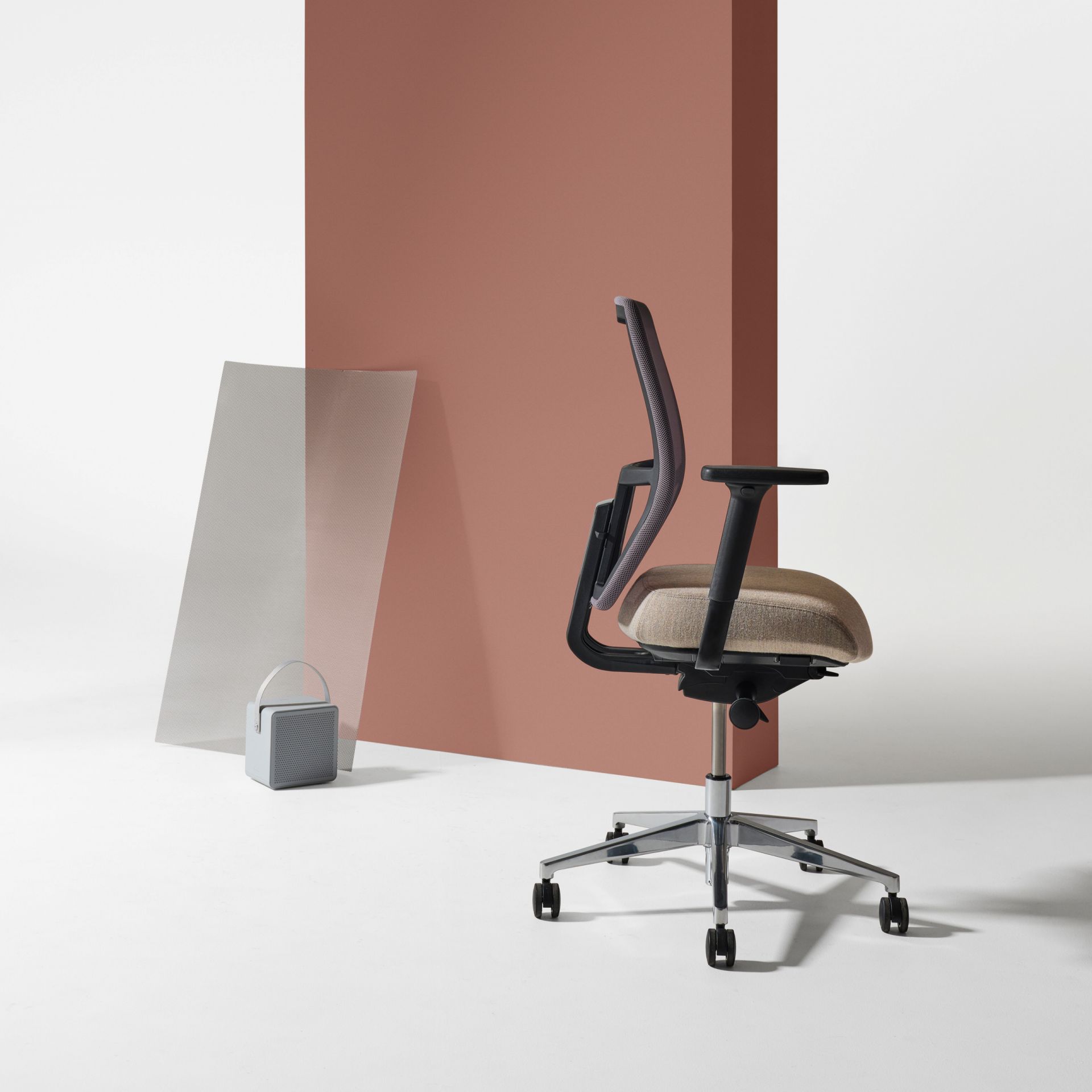

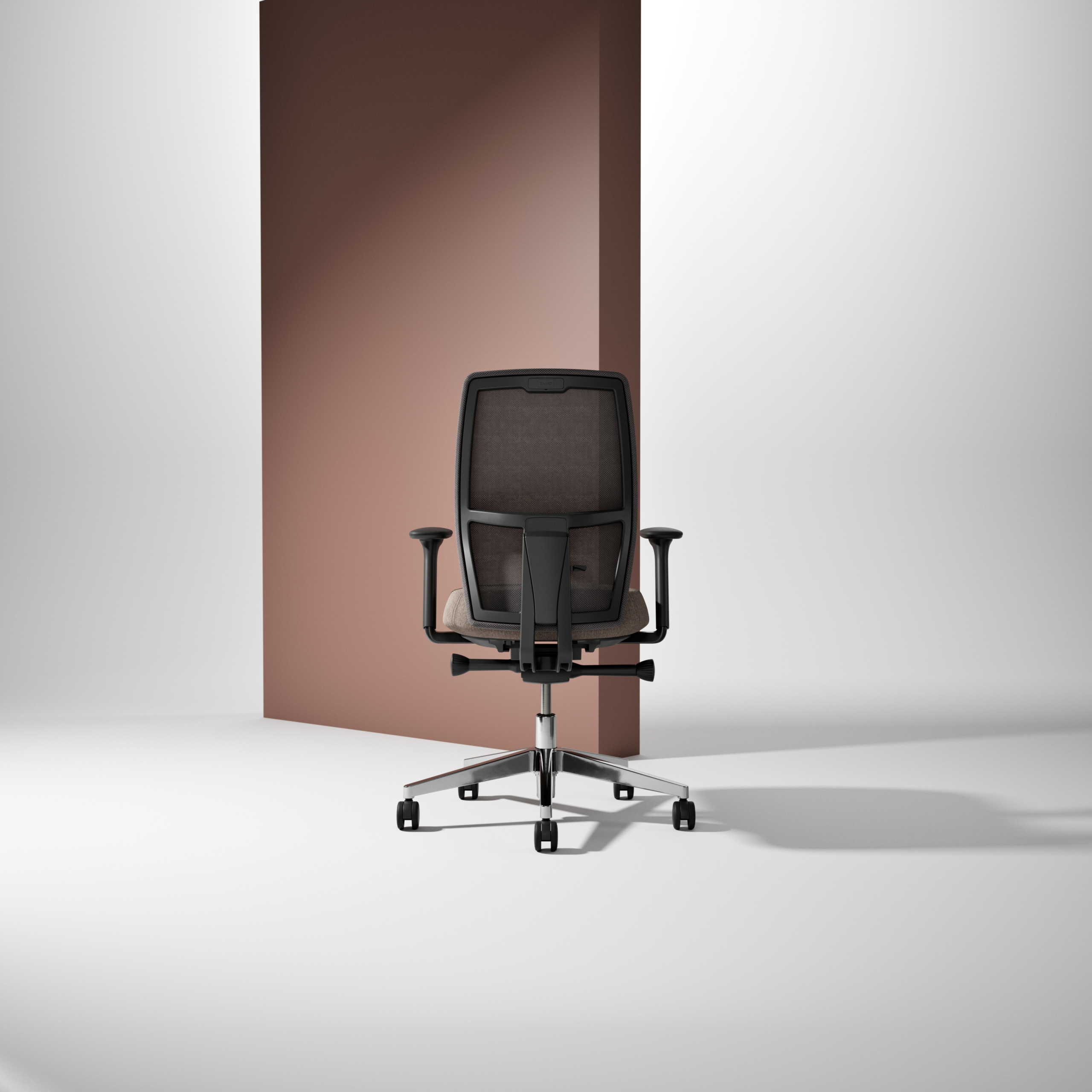

Savo Soul workchair
Ergonomic office chair, upholstered or mesh
Savo Soul is an ergonomic office chair, without being complex, so that it can interact with the body in perfect harmony. It is a chair for everyone, it is easy to use, immediately adapts itself to the user and has an intuitive design. The chair can be fine-tuned as needed, so that you can sit well all day long. The backrest and seat are synchronized for an extra smooth feeling and the automatic adjustment of the back resistance means that you can safely lean back with comfortable support. The seat and backrest can be tilted independently in several angles. The Flexi Back® function follows the body's movements automatically, even sideways, which keeps the back upright providing optimal support in all positions.
Model
Savo Soul workchair
Construction
Black back, with frame and J-bar in recycled plastic and cold foam (upholstered back). White back, with frame and J-bar in plastic and cold foam (upholstered back). Seat frame in plastic, with cold foam padding. Mechanism in cast recycled aluminium. Height-adjustable gas lift in steel. Black 5-star swivel base, in cast recycled plastic or recycled aluminium, with castors Ø 60 mm. White 5-star swivel base, in cast plastic, with castors Ø 60 mm. (option) Polished 5-star swivel base, in cast recycled aluminium. Armrests (option), in black injection-moulded recycled plastic or white injection-moulded plastic. Headrest (option), with frame in black recycled plastic and cold foam padding, or white with frame in plastic and cold foam padding.
Guarantee
10 years
Tested
EN1335- 1, -2:2018, EN1728

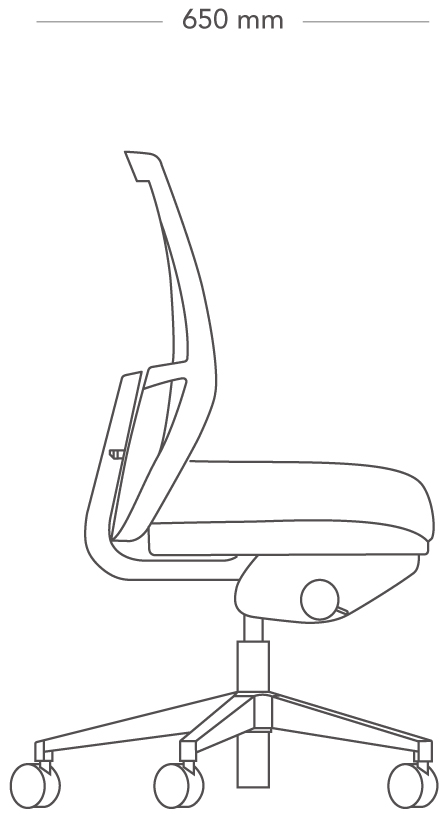

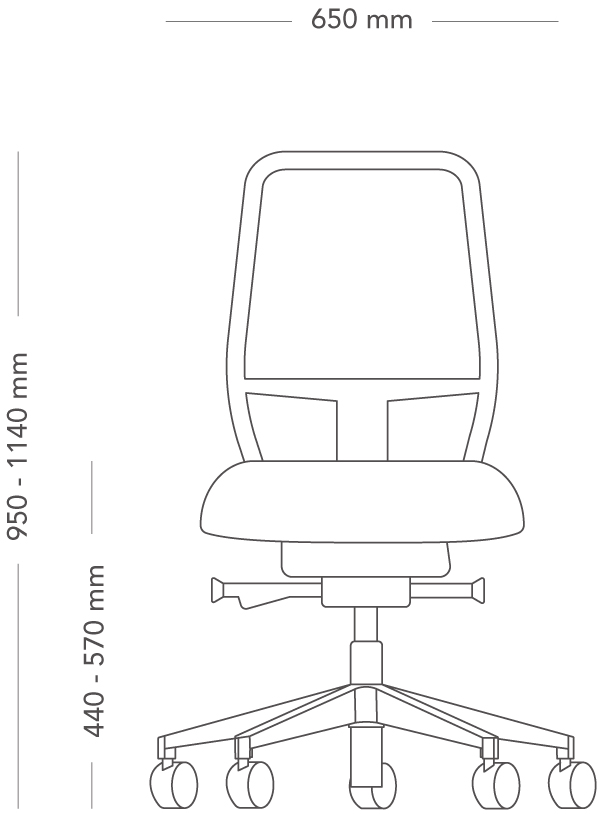

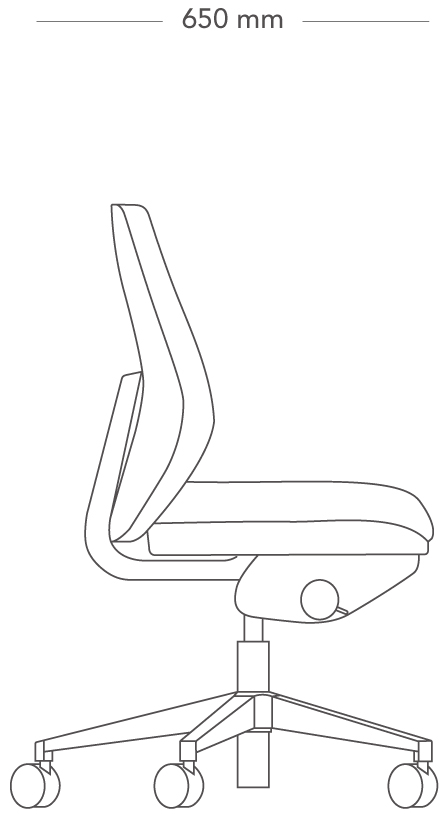

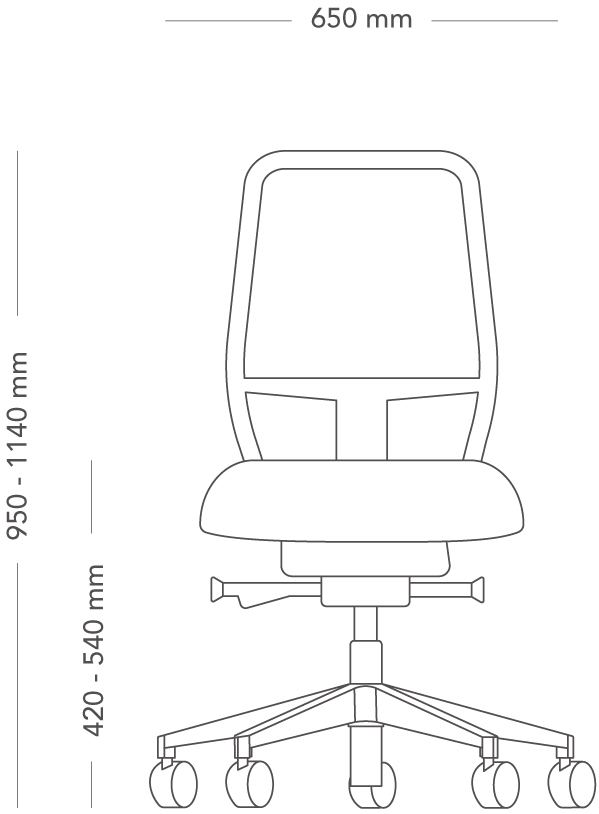

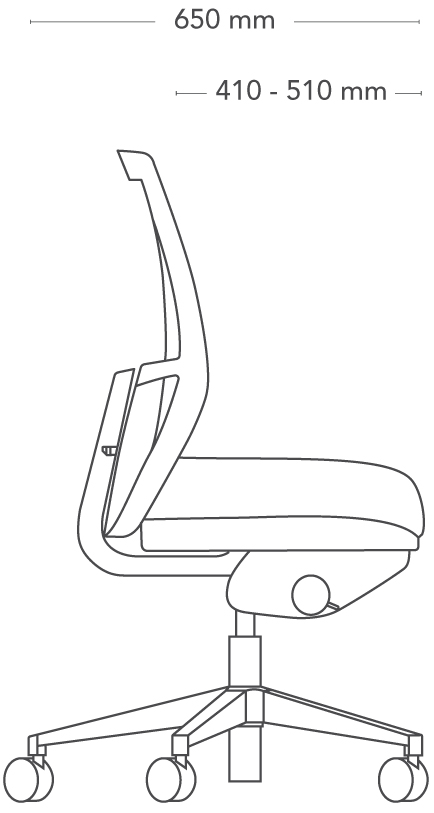

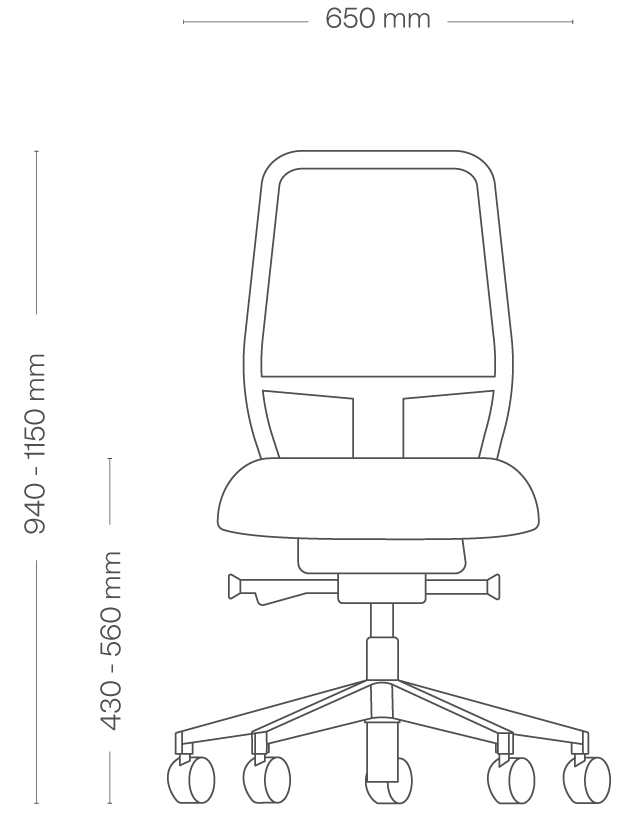

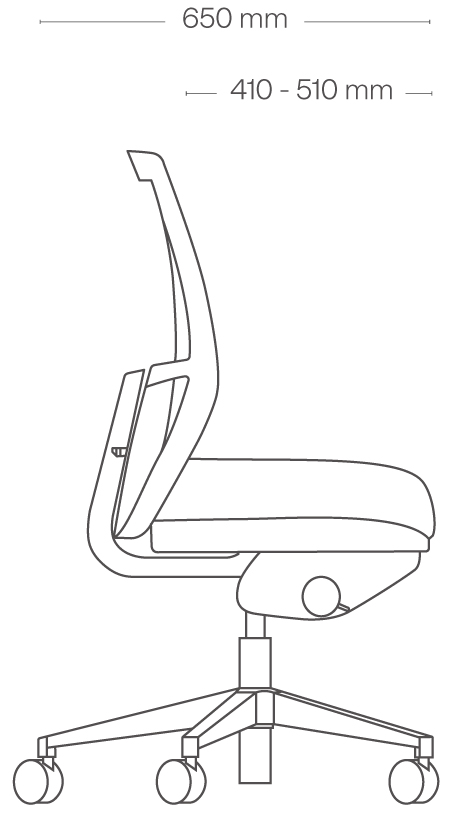

Mesh back 50 (soft seat)
| Height | 940-1150 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 430-560 mm |
| Weight | 13.3 kg |

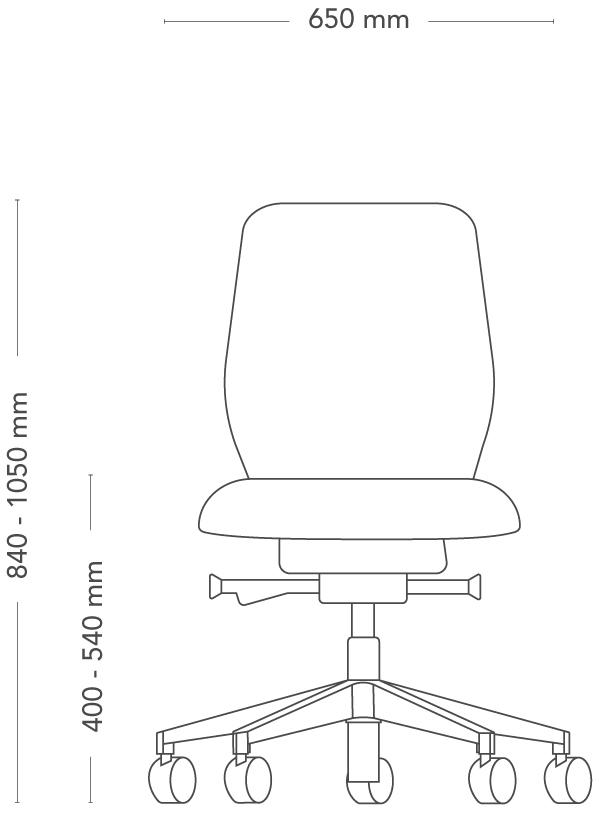

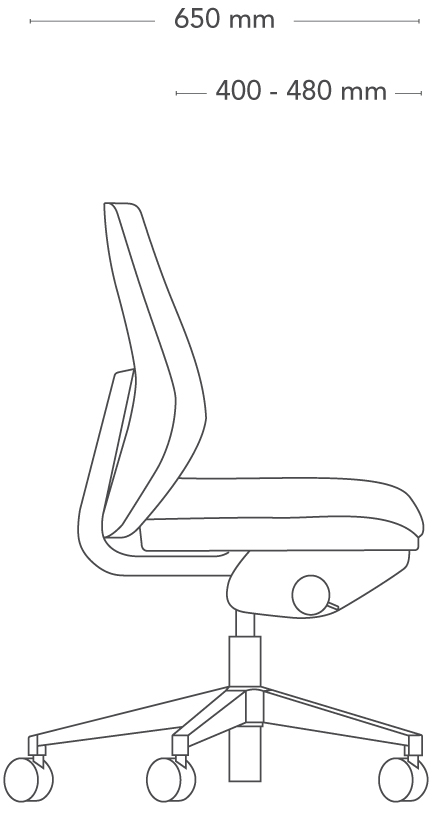

40 back (small seat)
| Height | 840-1050 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 400-540 mm |
| Backrest W | 400 mm |
| Backrest H | 480 mm |
| Base diameter | 710 mm |
| Weight | 15.1 kg |

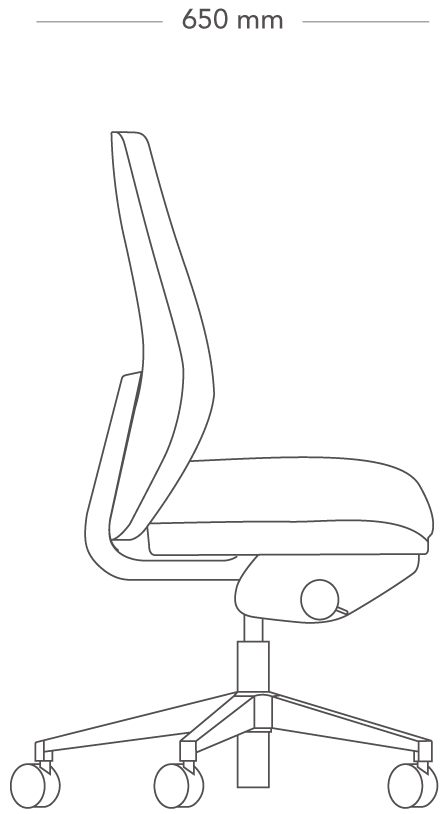

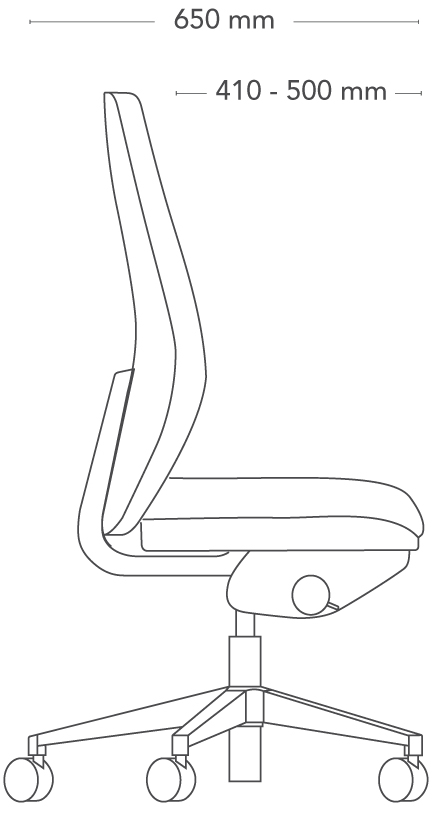

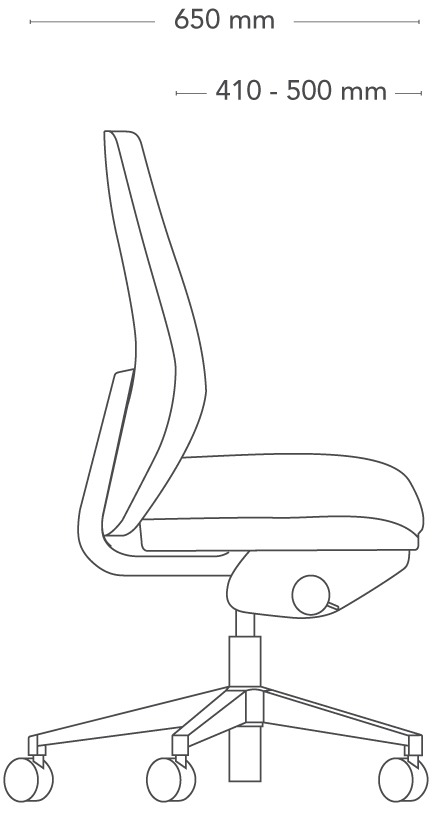

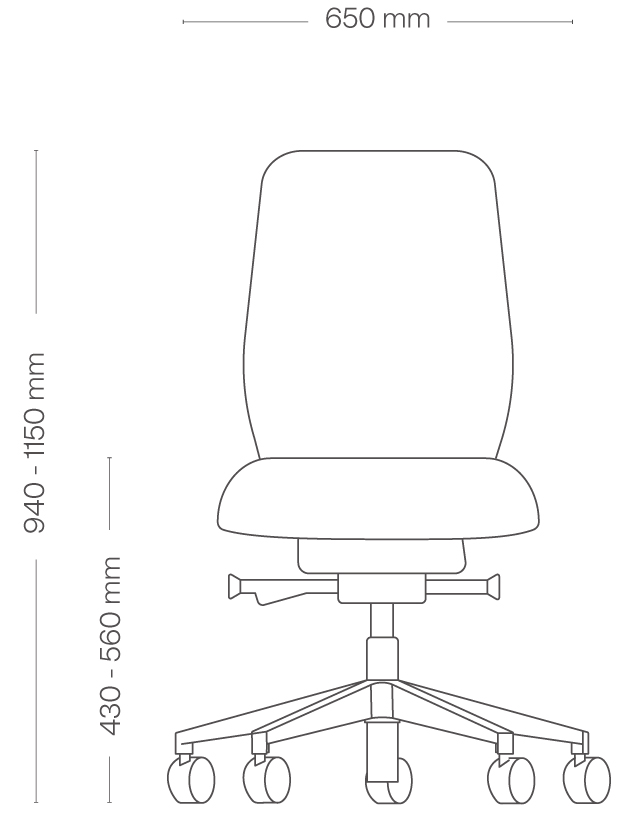

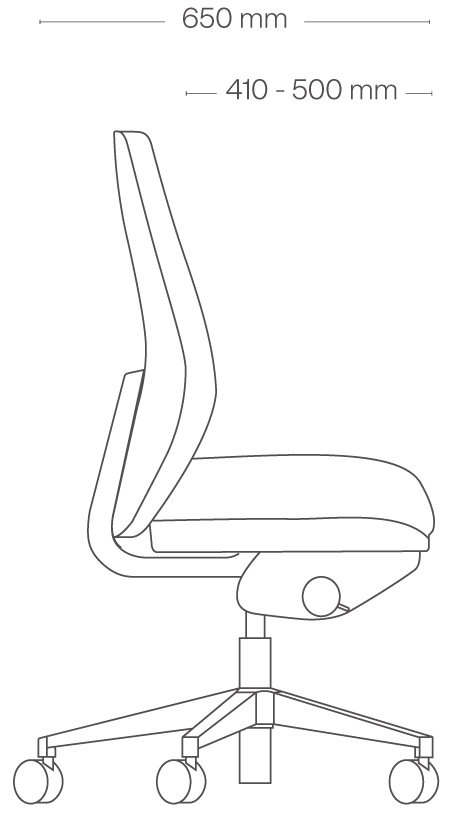

50 back (soft seat)
| Height | 940-1150 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 430-560 mm |
| Backrest W | 420 mm |
| Backrest H | 590 mm |
| Base diameter | 710 mm |
| Weight | 15.7 kg |

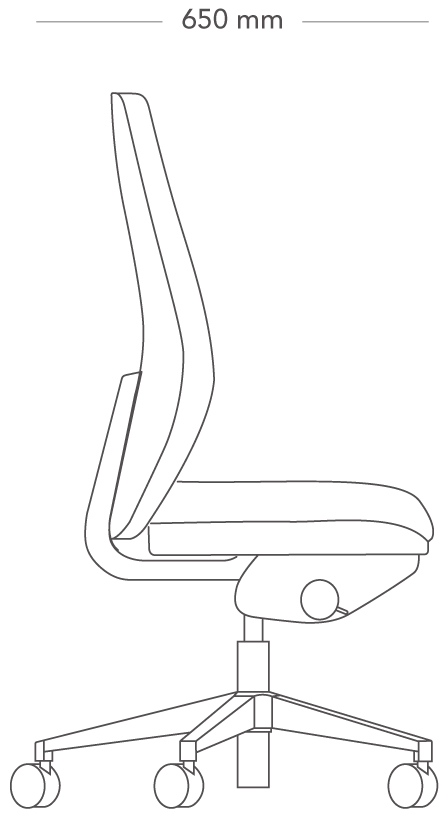

60 back (medium seat)
| Height | 1040-1250 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 400-540 mm |
| Backrest W | 420 mm |
| Backrest H | 670 mm |
| Base diameter | 710 mm |
| Weight | 15.9 kg |
Variant
Backrest
-
Back 40
Upholstered backrest, height 40 (not avaialable in white).
-
Back 50
Upholstered back, height 50.
-
Back 60
Upholstered back, height 60.
-

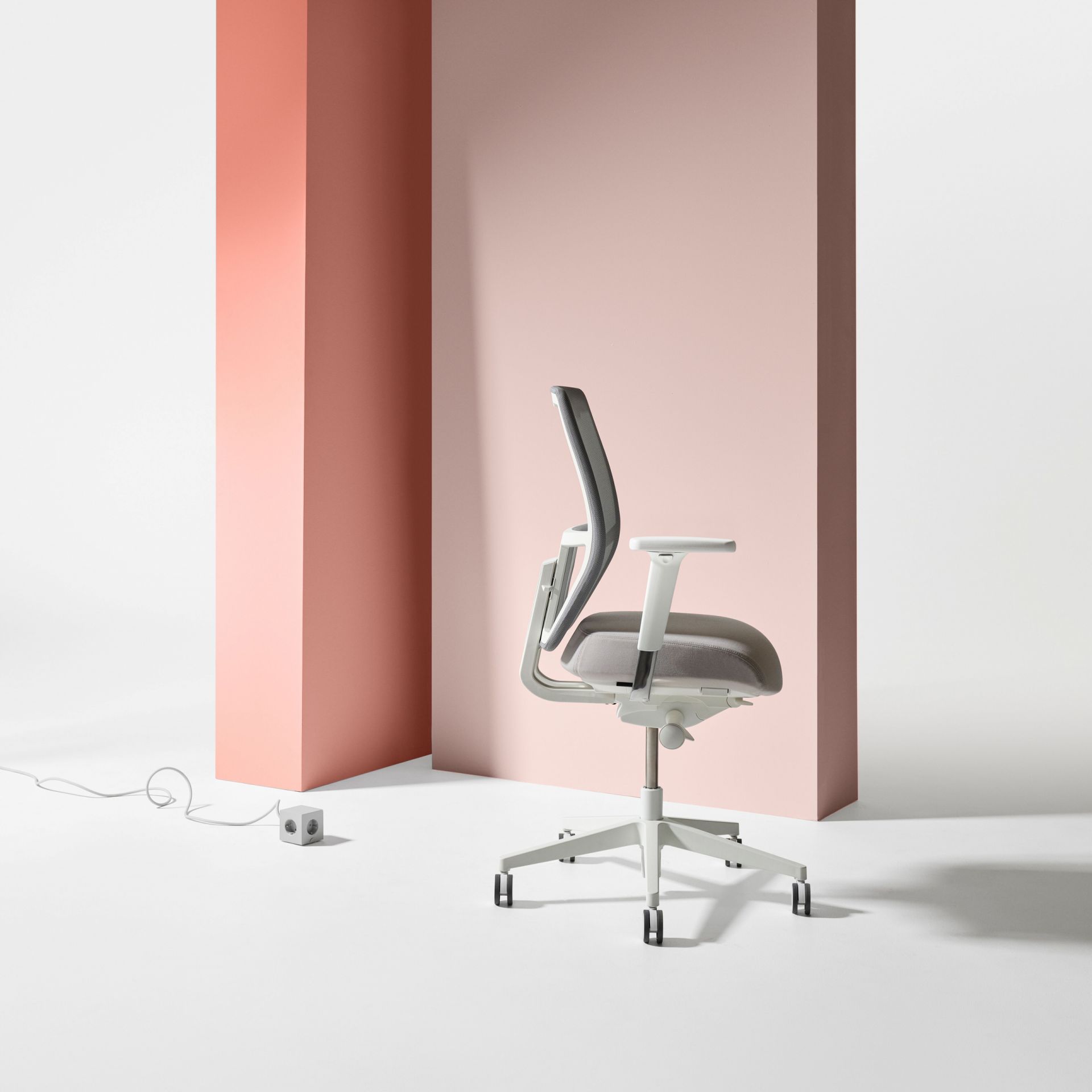

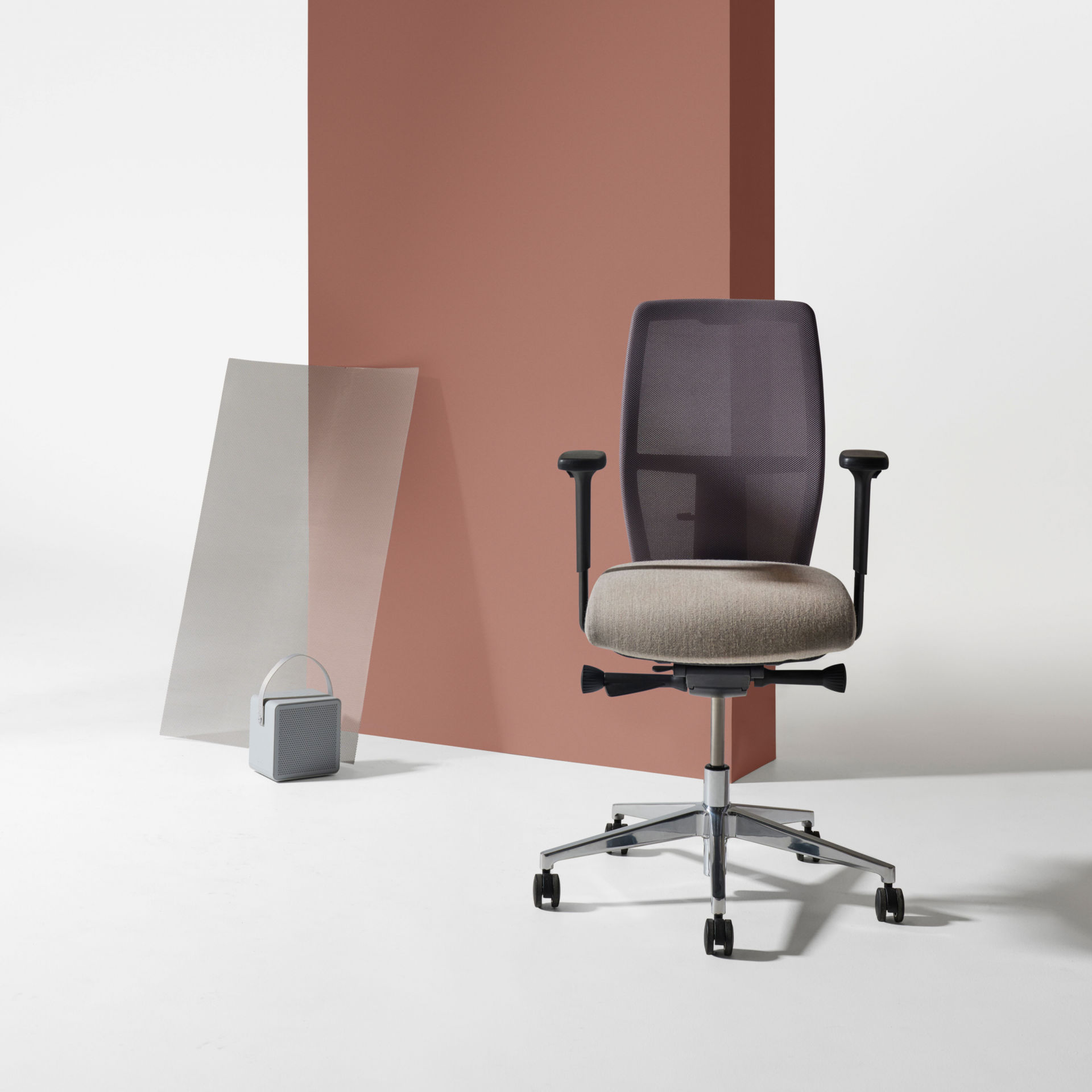

Mesh back
Mesh back.
Seat
-
Seat Small
Seat Small, 455x450 mm.
-
Seat Medium
Seat Medium, 475x490 mm.
-
Seat Soft
Seat Soft, 485x460 mm. +20 mm seat height
Materials
Seat
-
Fabric
-
-
Popular fabrics and leathers
-
-
Metal
-
-
Colour
-
Back
-
Fabric
-
-
Popular fabrics and leathers
-
Mesh back
-
Fabric
-
-
Popular fabrics and leathers
-
Swivel base, backrest and armrests
-
Metal
-
-
Plastic
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-

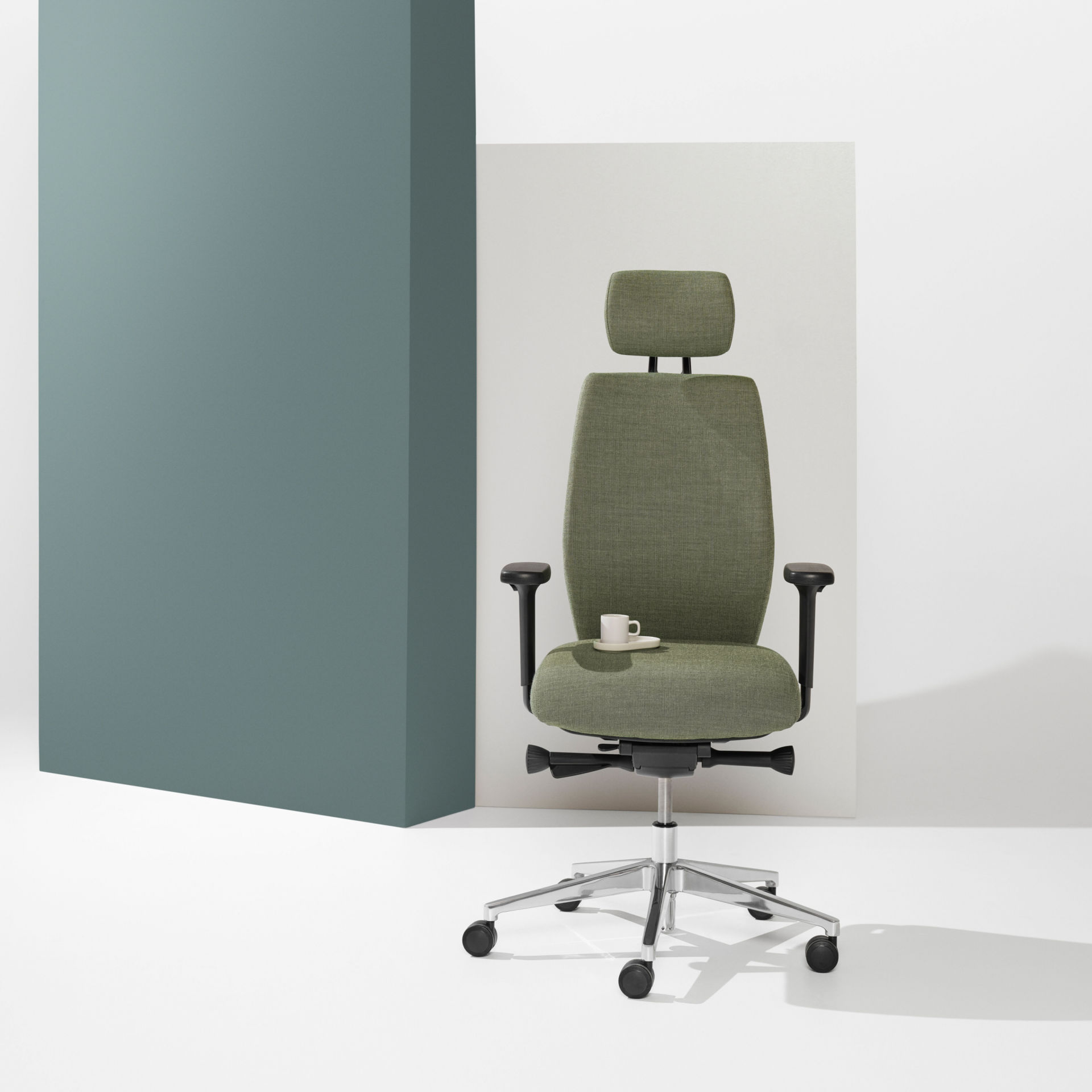

Neckrest
Neckrest, adjustable in height and depth.
-
Armrests
Adjustable armrests: "2D" in width and height. "5D" are also adjustable in angle, depth and with a sliding top pad for additional width adjustment. Armrests can be retrofitted.
-
Options for castors
Braked castors for hard flooring, interval-braked castors for hard flooring. Castors without brake, for soft flooring.
