Savo Soul high chair
Ergonomic office chair high seating
Soul high is an ergonomic office chair with castors. Soul's intuitive design with logical and easily accessible settings makes it suitable for many different users and is ideal both in project rooms/group rooms and in shared offices with activity-based working methods.
Model
Savo Soul high chair
Construction
Black back, with frame and J-bar in recycled plastic and cold foam (upholstered back). White back, with frame and J-bar in plastic and cold foam (upholstered back). Seat frame in plastic, with cold foam padding. Mechanism in cast recycled aluminium. Height-adjustable gas lift in steel. Black 5-star swivel base, in cast recycled plastic or recycled aluminium, with castors Ø 60 mm. White 5-star swivel base, in cast plastic, with castors Ø 60 mm. (option) Polished 5-star swivel base, in cast recycled aluminium. Armrests (option), in black injection-moulded recycled plastic or white injection-moulded plastic. Headrest (option), with frame in black recycled plastic and cold foam padding, or white with frame in plastic and cold foam padding.
Guarantee
10 years
Tested
EN1335- 1, -2:2018, EN1728

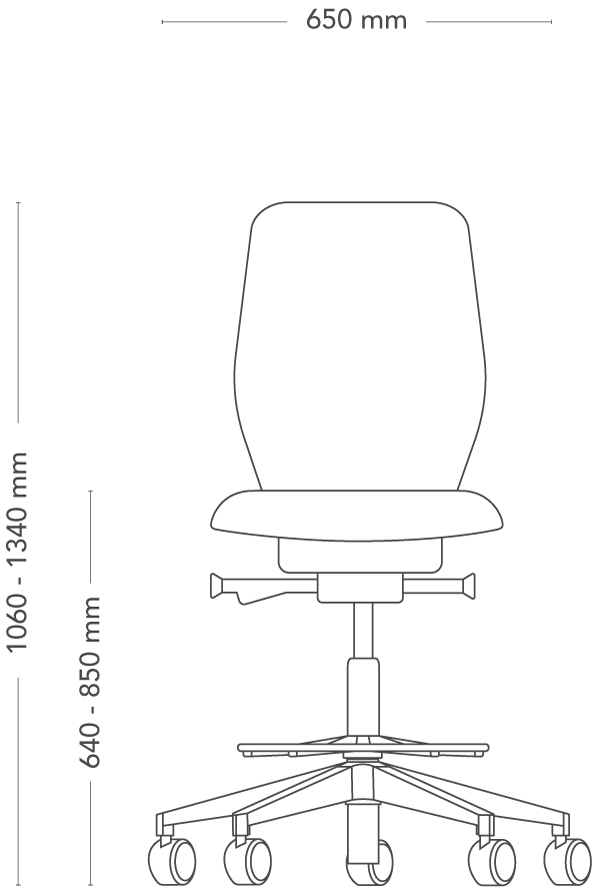

High chair, 40 back (small seat)
| Height | 1060-1340 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 640-850 mm |
| Backrest W | 400 mm |
| Backrest H | 480 mm |

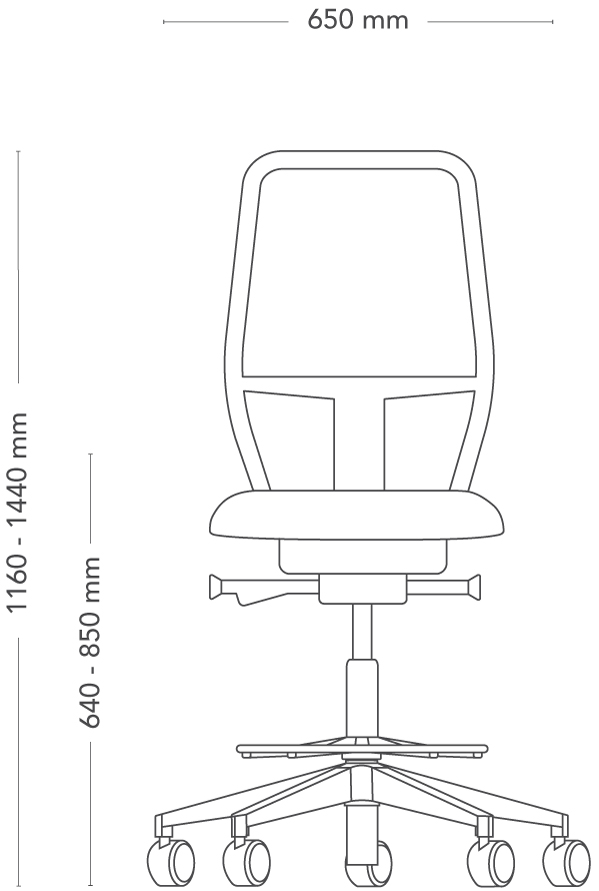

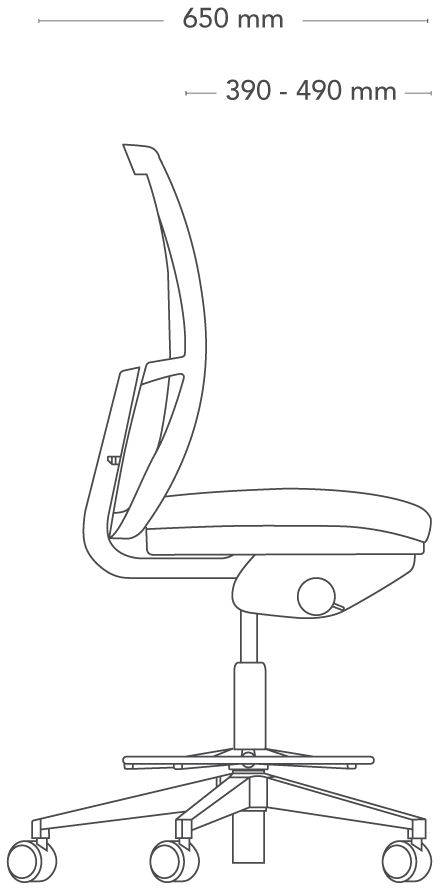

High chair, Mesh back 50 (small seat)
| Height | 1160-1440 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 640-850 mm |
| Backrest W | 420 mm |
| Backrest H | 590 mm |
| Base diameter | 710 mm |
| Weight | 13.3 kg |
Variant
Backrest
-
Back 40
Upholstered backrest, height 40 (not avaialable in white).
-
Mesh back
Mesh back.
Seat
-
Seat Small
Seat Small, 455x450 mm.
Materials
Seat and back
-
Fabric
-
-
Popular fabrics and leathers
-
Mesh back
-
Fabric
-
-
Popular fabrics and leathers
-
Swivel base, backrest and armrests
-
Metal
-
-
Plastic
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Armrests
Armrests as option. Armrests "2D " are adjustable in width and height, armrests "4D" are adjustable in width, height and angle, armrests "4D plus" are adjustable in width, height, depth and can also be turned 360 degrees.
-
Options for castors
Braked castors for hard flooring, interval-braked castors for hard flooring. Castors without brake, for soft flooring.
| Models | ||
|---|---|---|
| Savo Soul high AutoCad .2dwg .3dwg | zip | Share file Download file |
| Savo Soul 3D Studio .3ds | zip | Share file Download file |
| Savo Soul AutoCad .2dwg. 3dwg | zip | Share file Download file |
| Savo Soul ArchiCad gsm | zip | Share file Download file |
| Savo Soul ifc | zip | Share file Download file |
| Savo Soul Revit .rfa | zip | Share file Download file |
| Savo Soul Sketchup | zip | Share file Download file |
| Assembly instructions | ||
|---|---|---|
| Soul Soul - assembly instruction, neckrest | Share file Download file | |
| User manual | ||
|---|---|---|
| Savo Soul - lumbar support user manual | Share file Download file | |
| Savo Soul - user manual | Share file Download file | |
| Certificates and licenses | ||
|---|---|---|
| Savo Soul - Environmental declaration | Share file Download file | |
| Brochures and Catalogues |
|---|
| Product sheet | ||
|---|---|---|
| Savo Soul high chair | Share file Download file | |
