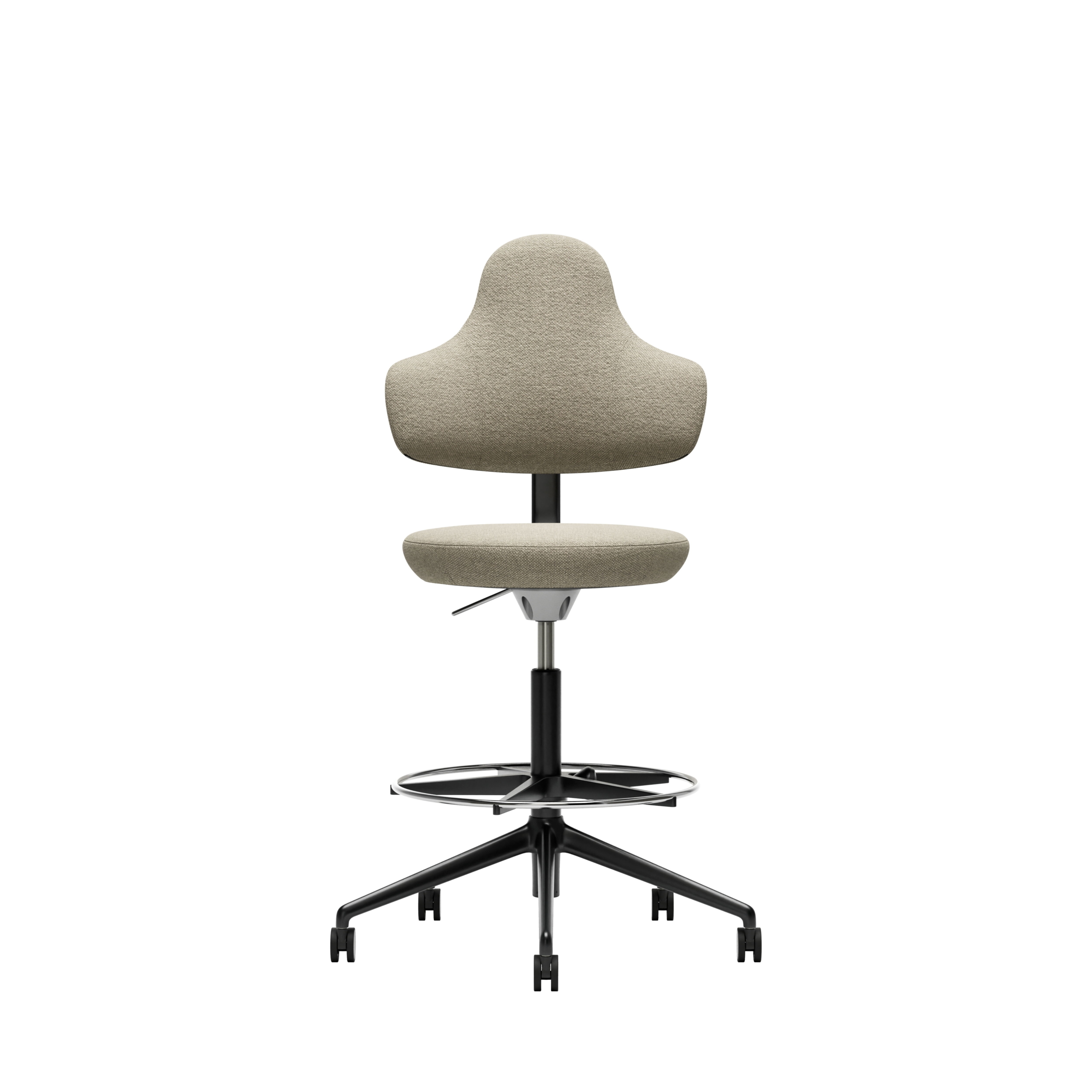

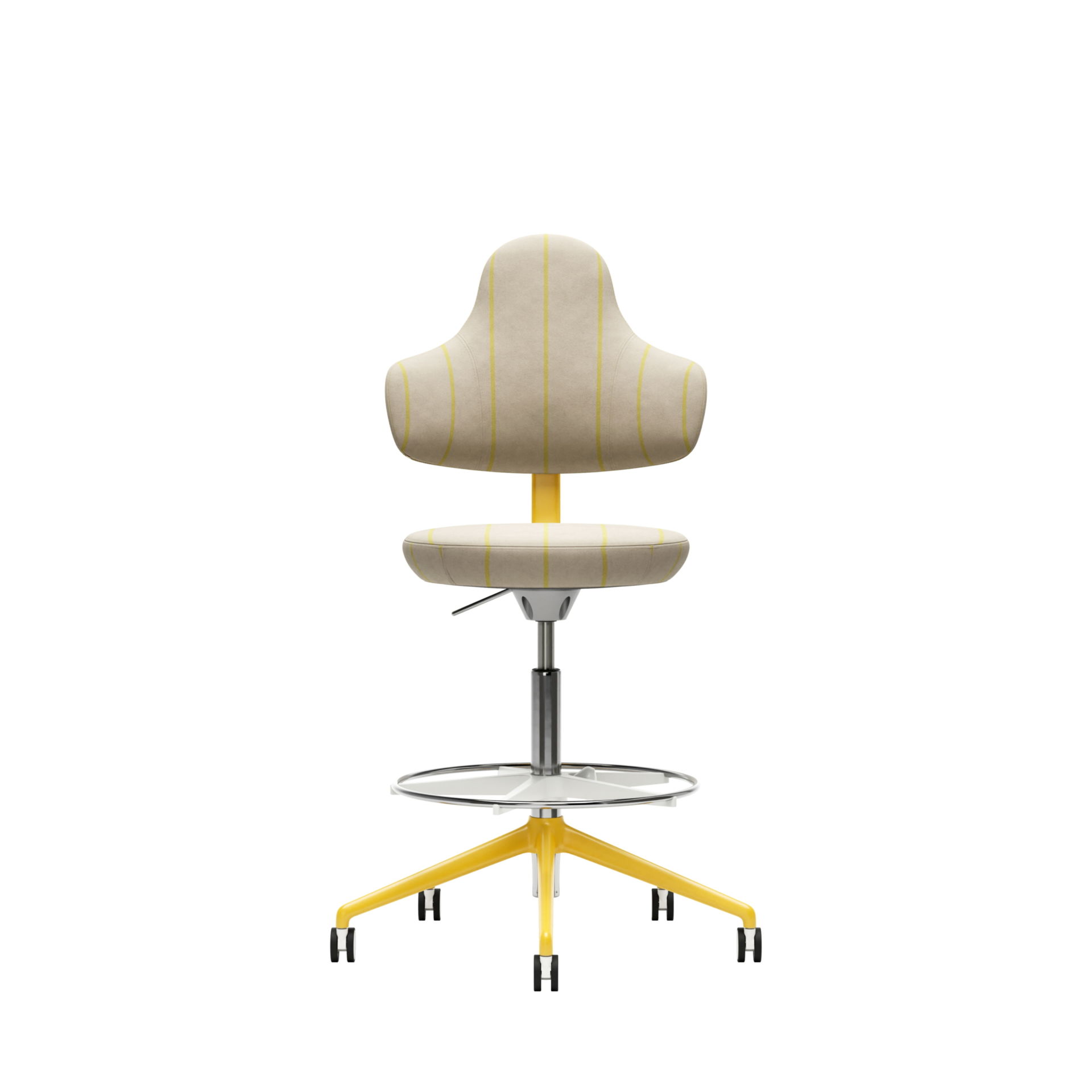

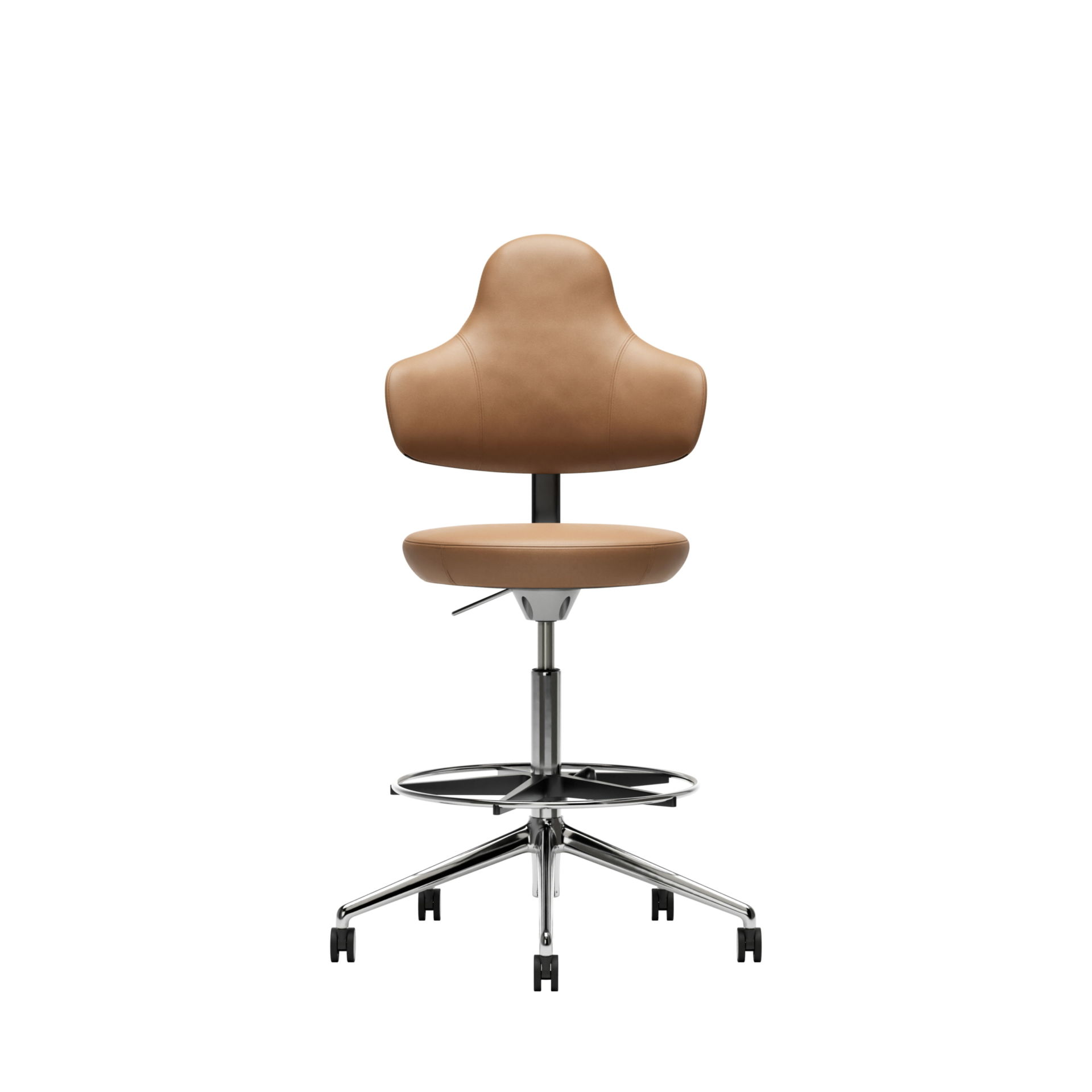

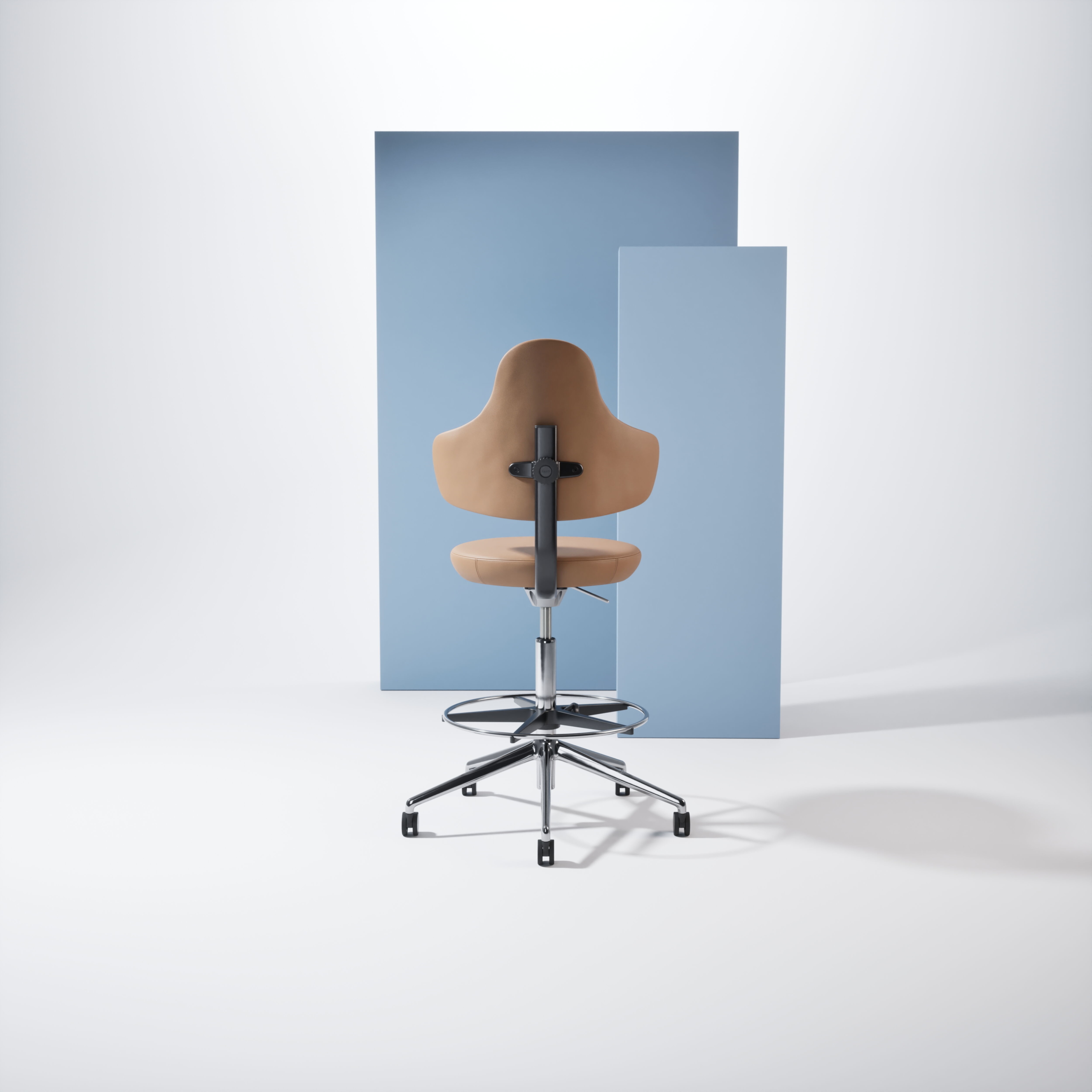

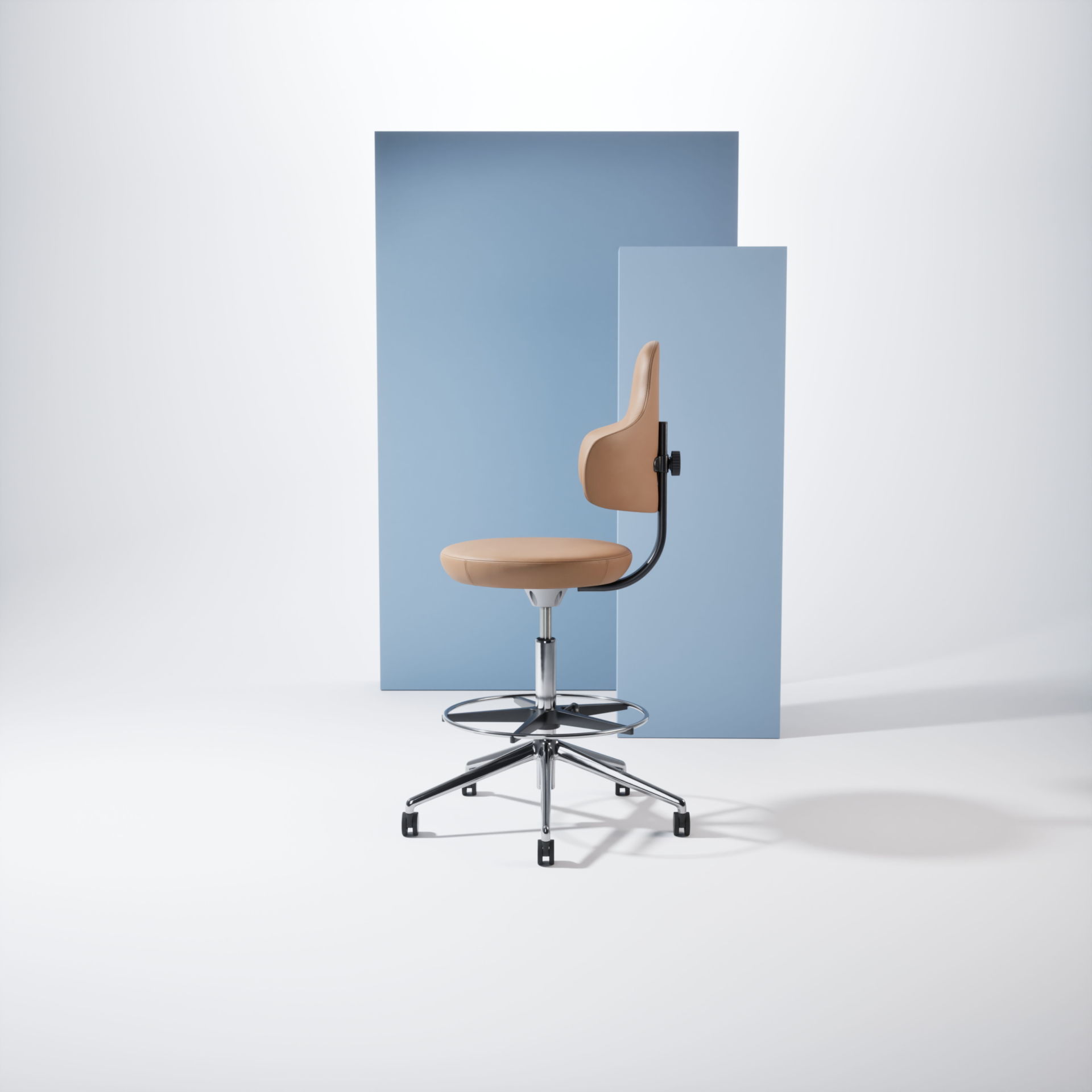

Savo Spine high chair
Spine is a modular and ergonomic platform of hybrid chairs. The platform construction means that it can be easily rebuilt into all the variants within the series, and be adapted to varying uses throughout the office. Spine can alternate between flexible stool, meeting chair and dedicated office chair for focused work. The seating mechanism provides 360 degrees of freedom in the sitting movement, for active sitting. Spine's layer-by-layer design means that all parts of the chair are separable and can be replaced or updated as needed, and that the parts are made from pure, recyclable materials.Spine high chair has a "spine", a back post with a stepless bracket for adjusting the height of the headrest. To facilitate good ergonomics and balanced sitting, a foot ring is included in the high chair.
Model
Savo Spine high chair
Details
Seat and back can be upholstered in different fabrics. Adjustable seat height (stroke 210 mm). Tilter-motion swing that allows a 360 degree freedom of seating movement. All-round castors suitable for all floors. Stepless positioning of the backrest. Adjustable foot ring.
Construction
Swivel base, seating mechanism and foot ring in cast aluminium. Steel gas lift and back post. The seat and back have a wooden inner frame covered with molded PUR foam. Controls in POM and Polyamide.
Guarantee
10 years
Tested
Tested according to EN 16139:2013

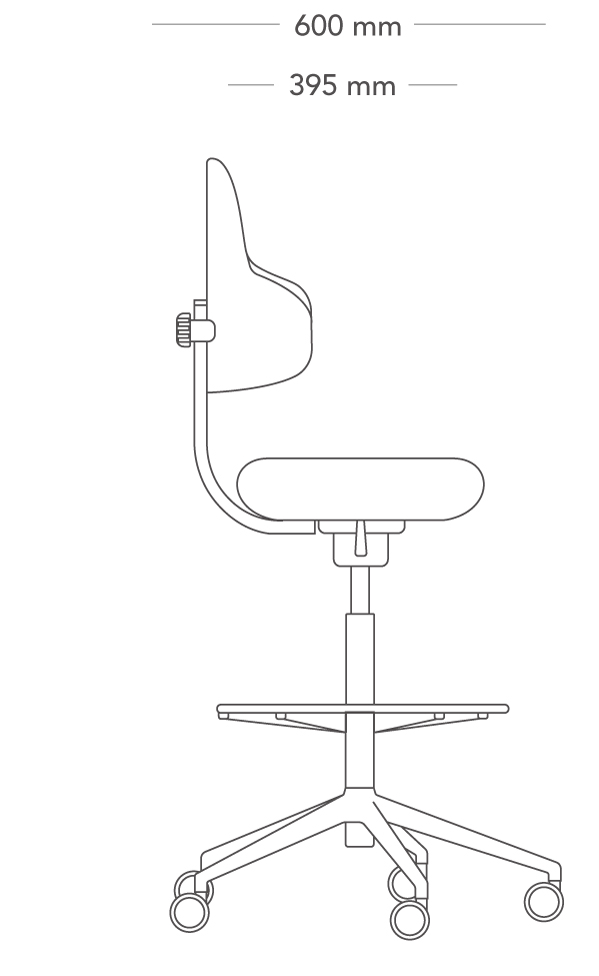

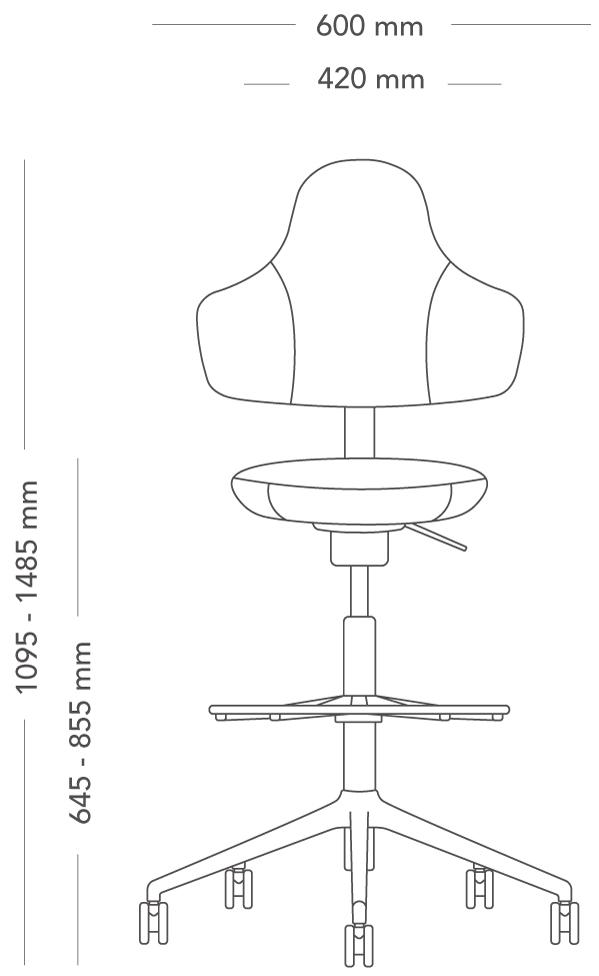

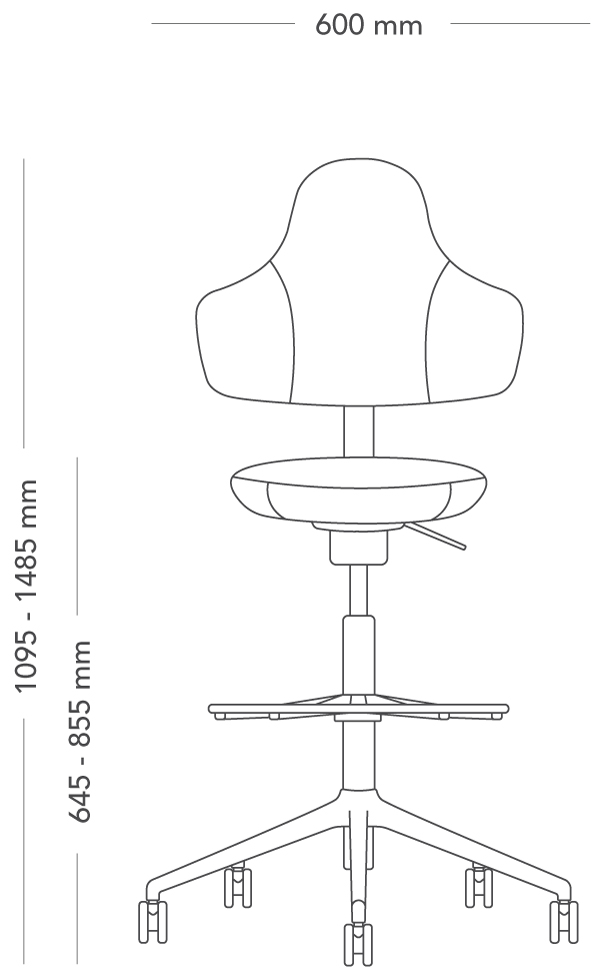

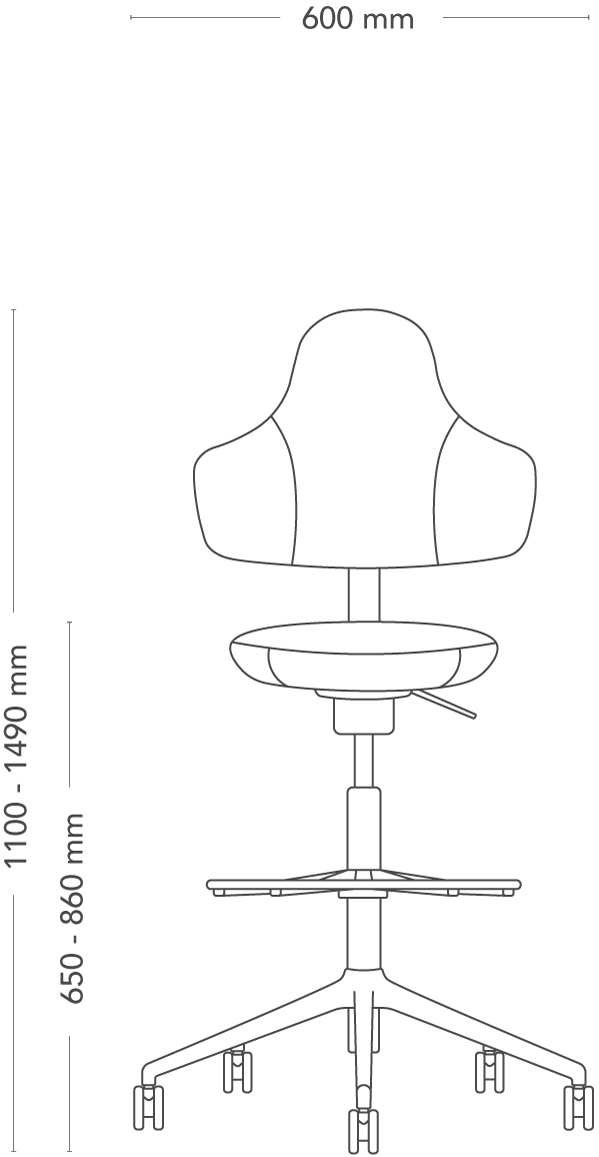

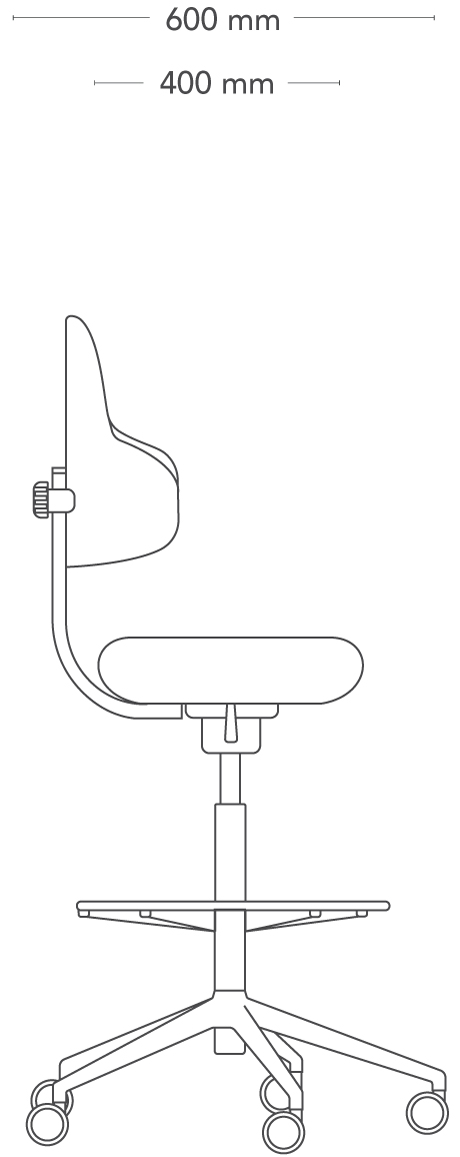

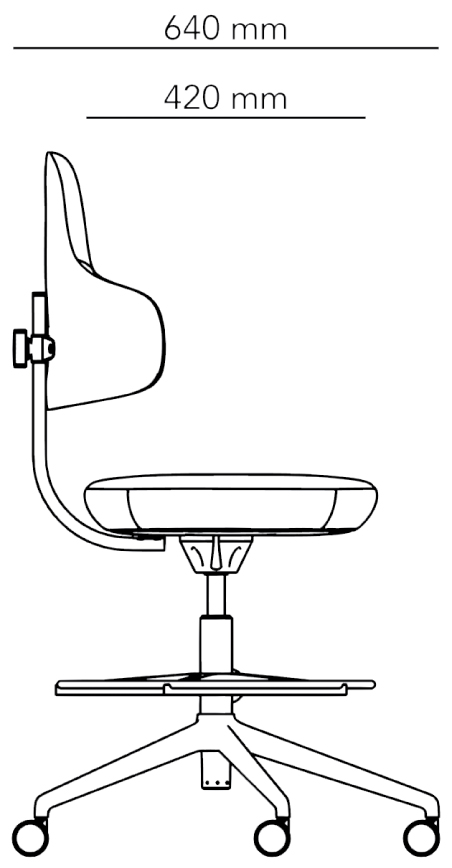

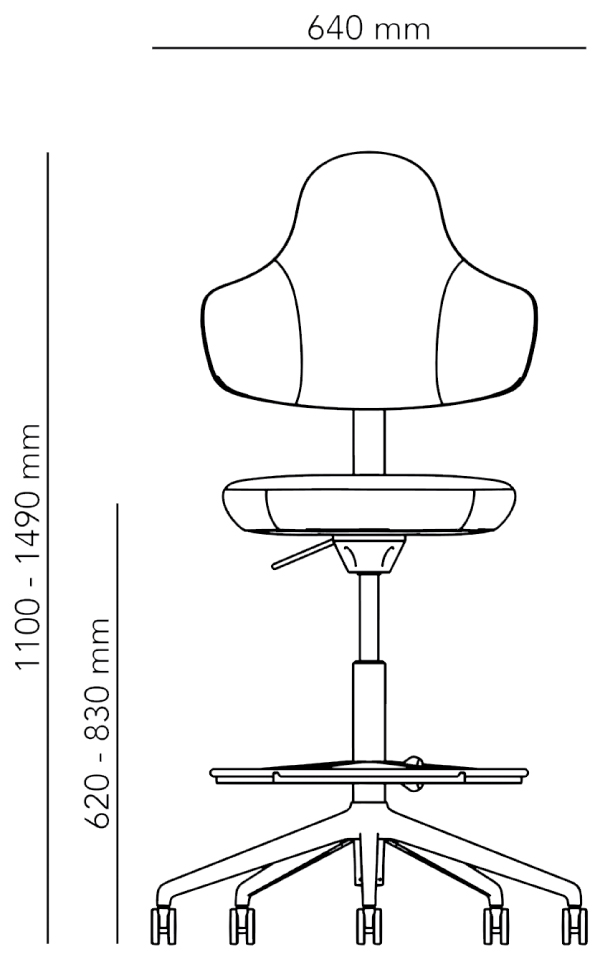

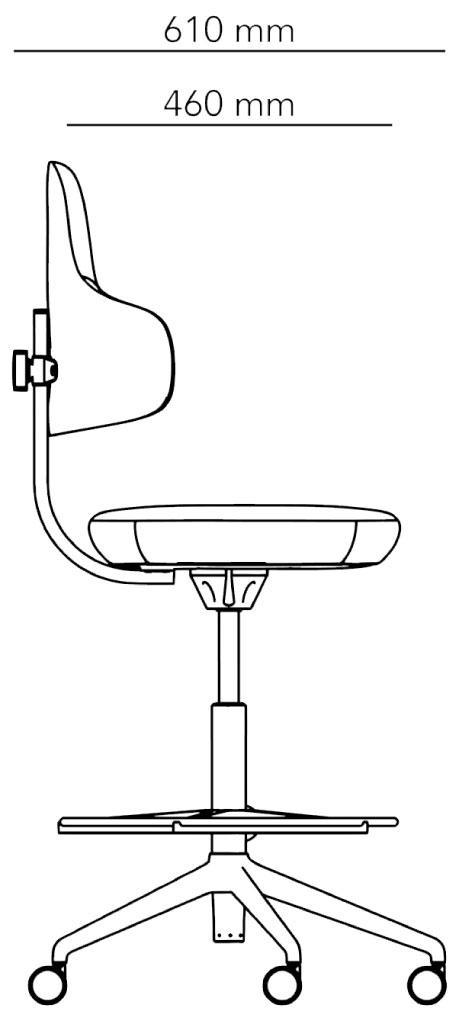

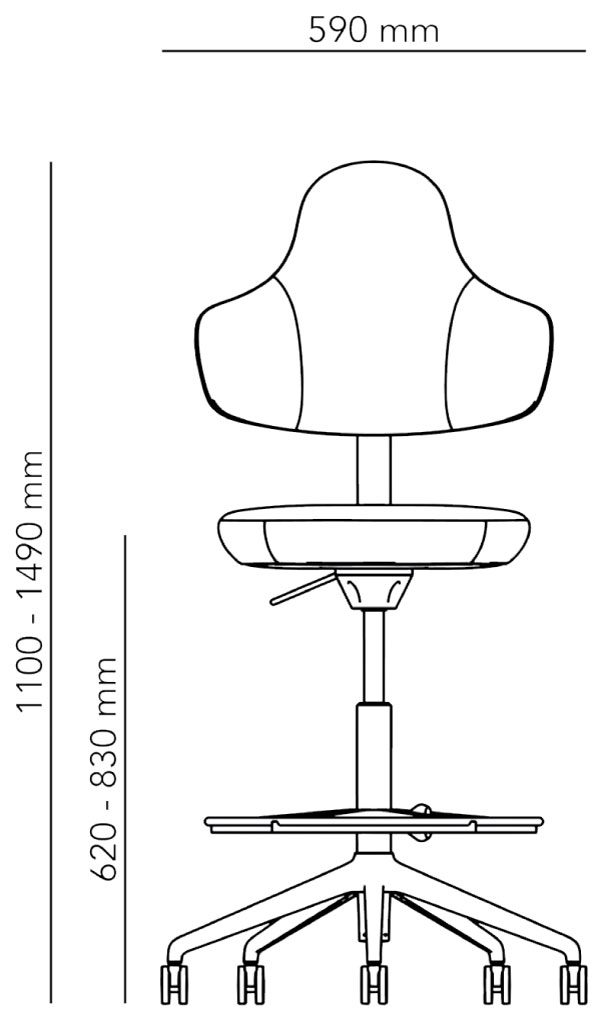

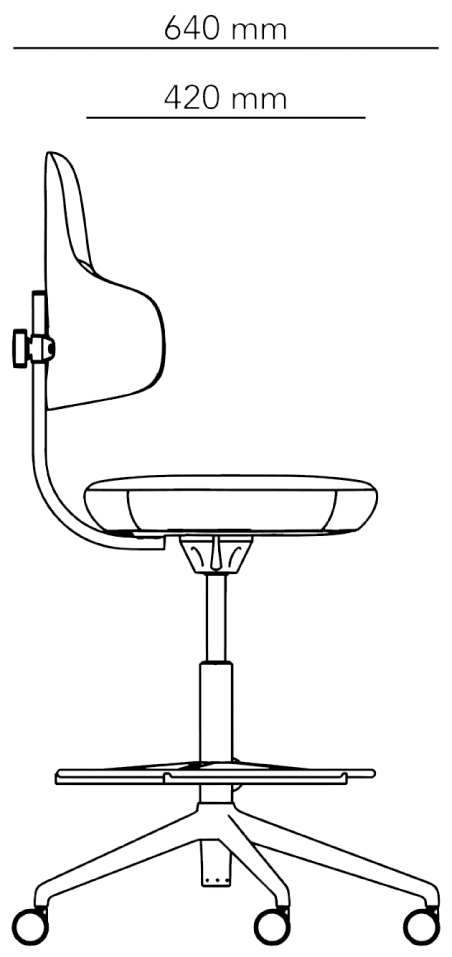

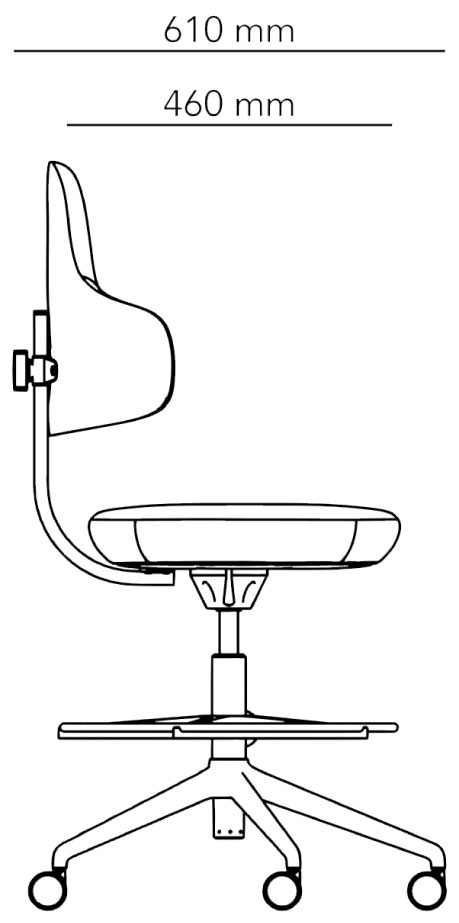

High chair
| Height | 1100-1490 mm |
| Width | 600 mm |
| Depth | 600 mm |
| Seat height (with load) | 650-860 mm |
| Seat depth | 420 mm |
| Seat width | 420 mm |
| Backrest W | 540 mm |
| Backrest H | 410 mm |
| Base diameter | 700 mm |
| Weight | 11.2 kg |
Materials
Seat and back
-
Leather
-
-
Popular fabrics and leathers
-
-
Fabric
-
Spine / Back post
-
Metal
-
Swivel base
-
Metal
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Alternative colours on spine (back post)
Back post (spine) can be lacquered in all RAL-colours on request.
-
Polished aluminium swivel base
Polished swivel base as option.
-
Interval-braked castors
Interval-braked castors for hard flooring (black).
-
Alternative colours on all-round castors
Alternative colours on all-round castors on request.
-
Alternative colour on seams
Seams are available in alternative colours on request.
