Soul workchair
Ergonomic office chair, upholstered or mesh
Savo Soul is an ergonomic office chair, without being complex, so that it can interact with the body in perfect harmony. It is a chair for everyone, it is easy to use, immediately adapts itself to the user and has an intuitive design. The chair can be fine-tuned as needed, so that you can sit well all day long. The backrest and seat are synchronized for an extra smooth feeling and the automatic adjustment of the back resistance means that you can safely lean back with comfortable support. The seat and backrest can be tilted independently in several angles. The Flexi Back® function follows the body's movements automatically, even sideways, which keeps the back upright providing optimal support in all positions.
Model
Soul workchair
Construction
Mesh back with frame and J-bar made of recycled plastic. Upholstered back with frame made of recycled plastic and cold foam, covered with fabric. Seat frame made of plastic with cold foam padding. Mechanism in recycled aluminium. Height-adjustable steel pillar. 5-star swivel base made of cast recycled aluminum, or recycled plastic, with castors diameter 60 mm. Armrests (optional) made of injection-molded recycled plastic and die-cast recycled aluminum. Headrest (optional) with recycled plastic frame with cold foam padding.
Guarantee
10 years
Tested
EN1335- 1, -2:2018, EN1728

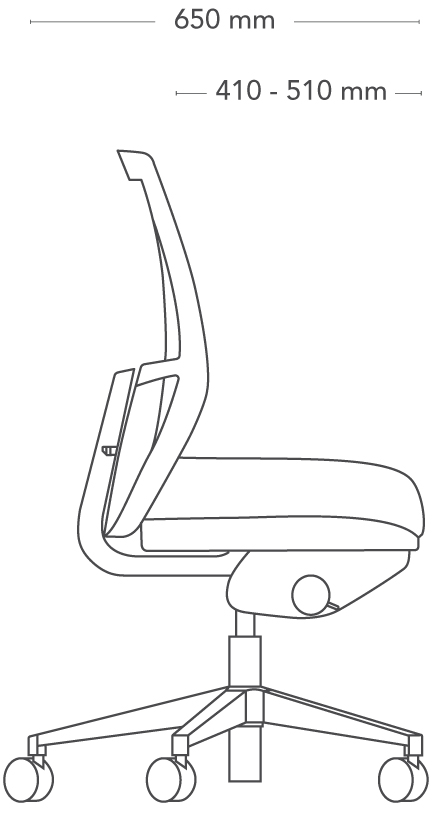

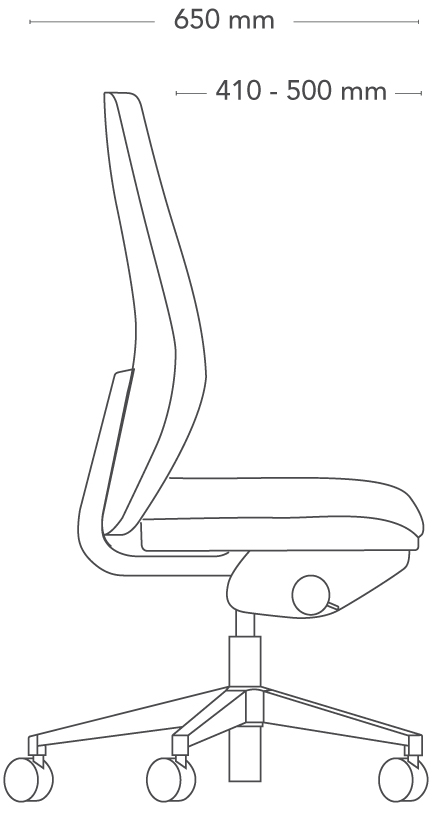

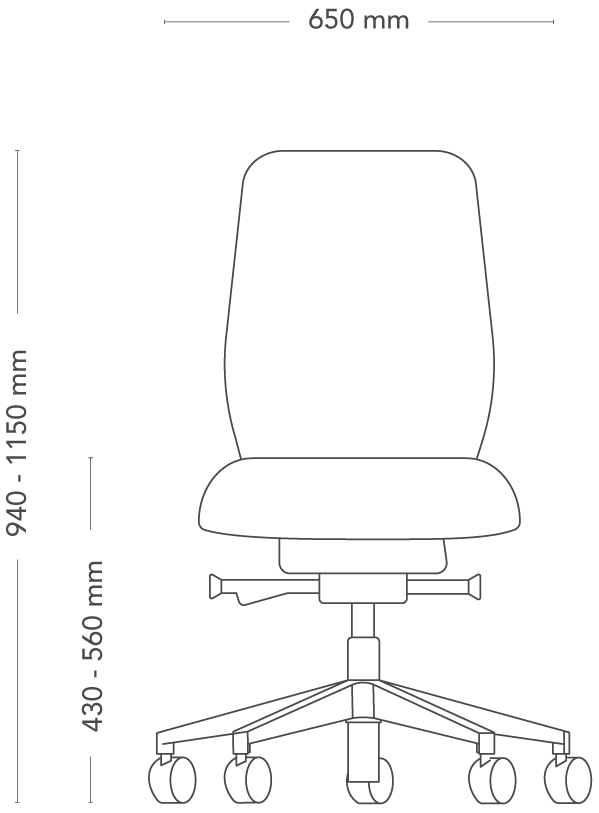

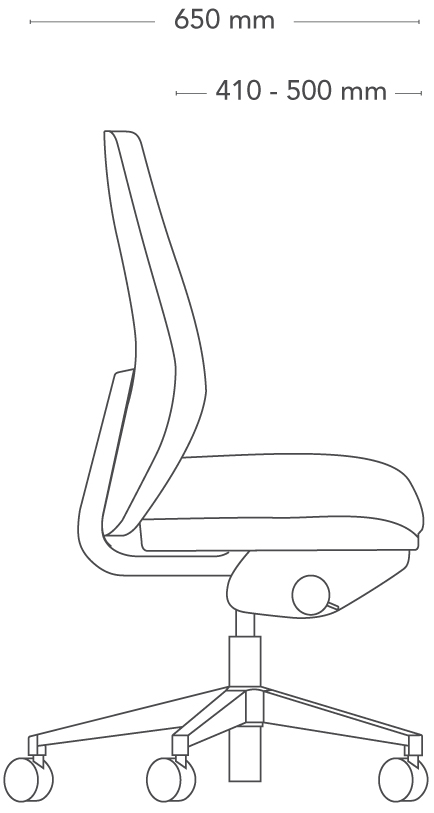

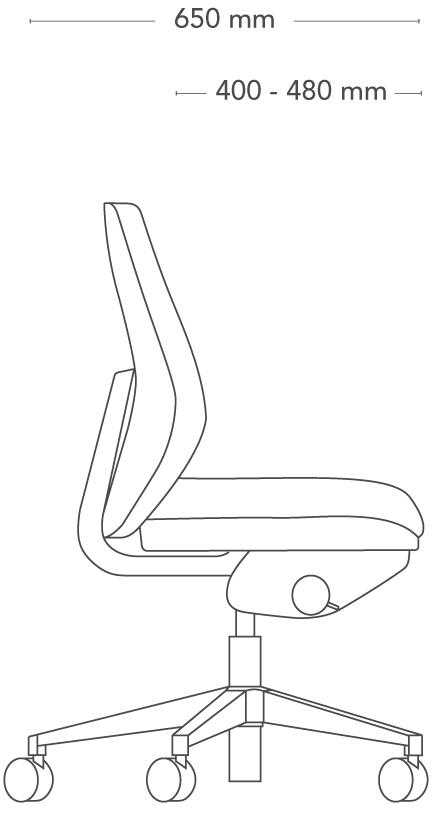

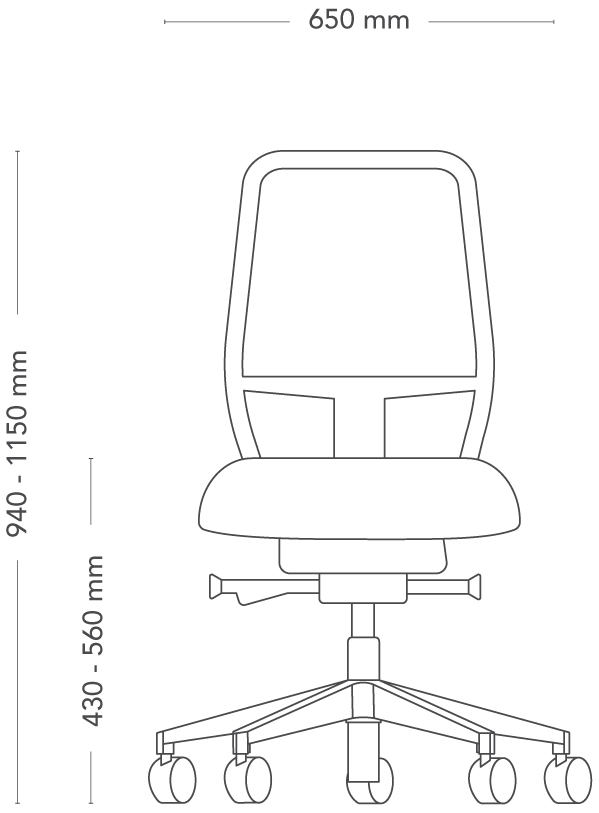

Mesh back 50 (soft seat)
| Height | 950-1140 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 440-570 mm |
40 back (small seat)
| Height | 850-1040 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 420-550 mm |
50 back (soft seat)
| Height | 950-1140 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 440-570 mm |
60 back (medium seat)
| Height | 1050-1240 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 420-550 mm |
Variant
Backrest
-
Back 40
Upholstered backrest, height 40 (not avaialable in white).
-
Back 50
Upholstered back, height 50.
-
Back 60
Upholstered back, height 60.
-
Mesh back
Mesh back.
Seat
-
Seat Small
Seat Small, 455x450 mm.
-
Seat Medium
Seat Medium, 475x490 mm.
-
Seat Soft
Seat Soft, 485x460 mm. +20 mm seat height
Materials
Seat
-
Popular fabrics and leathers
-
-
Fabric
-
-
Leather
-
Back
-
Popular fabrics and leathers
-
-
Fabric
-
Mesh back
-
Fabric
-
-
Popular fabrics and leathers
-
Swivel base, backrest and armrests
-
Metal
-
-
Plastic
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Neckrest
Neckrest, adjustable in height and depth.
-
Armrests
Armrests "2D " are adjustable in width and height, armrests "4D" are adjustable in width, height and angle, armrests "4D plus" are adjustable in width, height, depth and can also be turned 360 degrees.
-
Options for castors
Braked castors for hard flooring, interval-braked castors for hard flooring. Castors without brake, for soft flooring.
| Models | ||
|---|---|---|
| Savo Soul 3D Studio 3ds | zip | Share file Download file |
| Savo Soul AutoCad 2dwg, 3dwg | zip | Share file Download file |
| Savo Soul ArchiCad gsm | zip | Share file Download file |
| Savo Soul ifc | zip | Share file Download file |
| Savo Soul Revit rfa | zip | Share file Download file |
| Savo Soul Sketchup | zip | Share file Download file |
| Assembly instructions | ||
|---|---|---|
| Soul assembly instruction neckrest (EN) | Share file Download file | |
| User manual | ||
|---|---|---|
| Use guide/guide to adjusting a Soul chair (EN) | Share file Download file | |
| Soul manual | Share file Download file | |
| Lumbar support, user manual | Share file Download file | |
| Product sheet | ||
|---|---|---|
| Savo Soul - office chair | Share file Download file | |
| Certificates and licenses | ||
|---|---|---|
| Soul Environmental declaration (EN) | Share file Download file | |
| Soul Environmental Product Declaration (EN) | Share file Download file | |
| Möbelfakta Savo Soul (EN) | Share file Download file | |
| Brochures and Catalogues |
|---|
